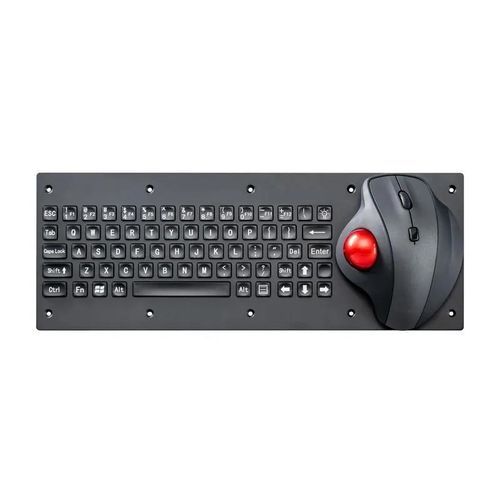

Panel-mount keyboard CK-KB15IN2-38TB

with mechanical keyswith trackballwith mouse

Description:
IP65 rated waterproof and vandal-resistant stainless steel marine keyboard with an integrated 38.0 mm laser trackball (>1200 DPI). Engineered for marine simulation, vessel control stations and industrial control panels. Fully sealed construction protects against salt mist, corrosion spray, dust, water, ice, low temperatures, chemical liquids, disinfectants and oils.

Features:

• Stainless steel front mounting panel with mounting holes
• One-piece complete waterproof rubber internal sealing
• 38.0 mm laser trackball with >1200 DPI resolution and >10 million cycle lifetime

Application:

• Marine control stations and bridges
• Industrial control panels and simulators

Dimensions:
350.0 mm x 129.0 mm (front panel).

Customization and certification:
Keyboard layouts available in multiple languages; legends or custom symbols on request. Export certifications: RoHS, CE and FCC. Warranty: 12 months.

Additional options:
OEM and ODM available. Custom mechanical or electronic configurations on request. Professional after-sales service provided.

Technical specifications:

• Operating Temperature: -40 °C to +80 °C
• Storage Temperature: -45 °C to +85 °C
• Waterproof rating: IP65
• Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
• Electronics: industrial grade
• Humidity resistant: 100%
• Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
• Actuation force: 1.5 N +/-0.1 N
• Key travel: 0.5 mm
• Key switch lifetime: 5 million operations
• Trackball lifetime: >10 million operations
• Lifespan: > 3 years
• MTBF: > 50000 H
• MTTR: < 30 min
• Gross weight: appr. 2.5 kg
• Supply voltage: +5 V DC +/- 5%
• Current rating: appr. 250 mA
• EMC emission: EN55022(B)
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test: +40 °C, 21 days, IEC 60512-6
• Dry heat test: +85 °C, 10 days, IEC 60512-6
• OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OS X, VxWorks, Android
• Trackball: 38.0 mm laser trackball, >1200 DPI, >10 million cycle lifetime
