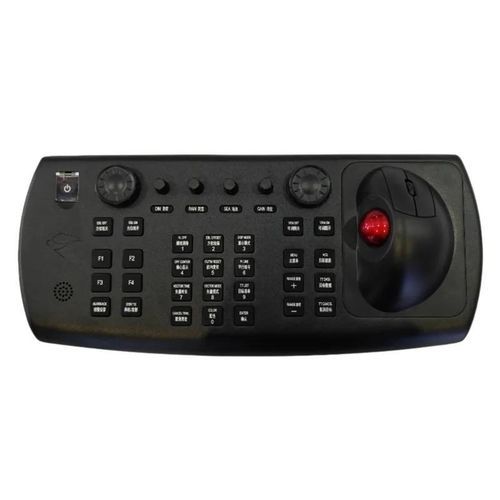

Panel-mount keyboard CK-KB15IN2-36TB

carbon contactwith trackballmarine

Overview
CK-KB15IN2-36TB marine-grade waterproof keyboard with integrated 36.0 mm stainless steel laser trackball. Designed for ship consoles, marine cabins, military and industrial installations, it features an IP65 sealed front panel, electroplated surface for improved corrosion resistance and a front-mounted polymer panel for secure installation in vibrating environments.

Key features

• Front-mounted polymer panel designed for panel installation
• Waterproof and dustproof enclosure (IP65)
• Integrated 36.0 mm stainless steel laser trackball with >1200 DPI
• Trackball provides left/right buttons and scroll wheel, replacing external mouse
• Trackball service life > 10 million cycles
• Carbon connecting key switches with tactile feedback (2.0 mm key travel, actuation force 1.0 N ±0.1 N)
• Front panel dimensions: 322.0 mm × 220.0 mm; keyboard weight approx. 1.0 kg
• Plug-and-play with optional RS232 or other customized interfaces
• Flexible layout customization: multi-language keymaps, custom legends and symbols
• Industrial-grade PCB and environmental testing (salt spray, damp heat, dry heat); certifications: RoHS, CE, FCC
• Warranty: 12 months (1 year limited warranty)

Applications

• Marine console simulation, ship cabins and fleet applications
• Industrial control consoles and automation panels
• Warehouses, clean rooms and operation rooms
• Military and aviation control stations
• Pharmaceutical, oil & gas, heavy manufacturing and public safety environments

Durability & testing highlights
Engineered to resist salt mist corrosion, low temperatures, heavy dust, water splashes, vibrations, chemical liquids, disinfectants and oil stains. Passed 96-hour salt spray test; 21-day damp heat test at +40°C; 10-day dry heat test at +85°C (IEC 60512-6). 100% humidity resistant. Key switch life up to 5 million operations. Trackball life > 10 million operations. MTBF > 50,000 hours; MTTR < 30 minutes.

Technical specifications

• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Ingress protection: IP65
• Shock resistance: 3 axis 150 m/s² -11 ms (IEC 60512-4)
• Electronics: marine-grade
• Humidity resistant: 100%
• Vibration resistance: 5 Hz - 200 Hz (IEC 60512-4)
• Actuation force: 1.5 N ±0.1 N
• Key travel: 0.5 mm
• Key switch lifetime: 5 million operations
• Trackball lifetime: > 10 million operations
• Average lifespan: > 6 years
• MTBF: > 50,000 h
• MTTR: < 30 min
• Gross weight: approx. 1.5 kg
• Supply voltage: +5 V DC ±5%
• Current rating: approx. 50 mA
• EMC emission: EN55022(B)
• Salt mist: 96 hours (IEC 60512-6)
• Damp heat: +40 °C, 21 days (IEC 60512-6)
• Dry heat: +85 °C, 10 days (IEC 60512-6)
• OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android
• Trackball: 36.0 mm laser trackball, >1200 DPI (service life > 10 million cycles)
