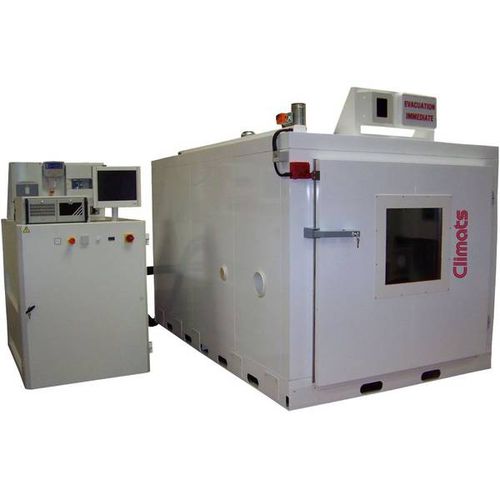

Climate chamber temperatureenvironmentalfor battery
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature
- Test type
- environmental
- Product applications
- for battery
- Application domain
- for quality control
- Protection level
- explosion-proof
- Temperature
Max.: 60 °C
(140 °F)Min.: -60 °C
(-76 °F)- Interior length
1,600 mm, 1,950 mm, 2,000 mm
(62.99 in, 76.77 in, 78.74 in)- Interior height
1,300 mm, 1,400 mm, 1,500 mm
(51.18 in, 55.12 in, 59.06 in)- Interior depth
2,000 mm, 2,200 mm
(78.74 in, 86.61 in)- External length
1,900 mm, 2,150 mm, 2,250 mm
(74.8 in, 84.6 in, 88.6 in)- External height
1,900 mm, 1,930 mm, 2,400 mm
(74.8 in, 75.98 in, 94.49 in)- External depth
3,200 mm, 3,300 mm, 3,400 mm
(125.98 in, 129.92 in, 133.86 in)
Description
For these very particular tests on sensitive products, the human safeties as well as products safeties are widely taken into account and solutions are offered according to the risks involved.
In case of a possible leak of the tested element :
Mini - Maxi temperature safety independent of the regulation
Door electromagnetic locking device
Nickel-plating protection of the evaporator
Cabinet protection against chemical attack
Retention tray for produit runoffs
In case of a possible degassing of the tested element :
Air renewal system
Door electromagnetic locking device
In case of a possible smoke, fire or flame of the tested element :
Smoke detection
Gas detection
Flame detection
Visual alarm
Audible alarm
Extinction by gas
In case of a possible explosion of the tested element :
Inerting by nitrogen flush controlled by Spirale Vision
O2 rate analyser
Explosive gas detector
Controlled relief valve or rupture disc
Air exhaust duct
