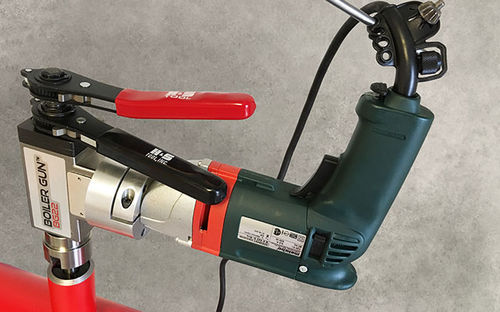

Pneumatic beveling machine BG22

electricportablefor tubes

With a working range of 0.5 – 2.5 inches (12.7 – 63.5 mm), the BG22 Boiler Gun™ is easy to use with more power and versatility to get your jobs done faster. Field-proven and armed with the most power in the industry, the BG22 Boiler Gun™ can bevel, square, and perform other machining operations on a wide range of tube and pipe sizes. Available in pneumatic, electric, and cordless electric to cover a wider range of applications more effectively. Working range: 0.500″ ID – 2.500″ OD (12.7 ID – 63.5 OD mm) Radial tool clearance: 0.8″ (20.3 mm) Head width: 1.6″ (50.8 mm) POWERFUL PERFORMANCE Powerful drive motors make quick work of light-wall tubing and provide the torque needed for heavy-wall alloy tubes. Heavy duty gearset increases machine longevity and provides the torque and speed required to perform a wide variety of end prep work. Heavy-duty tapered roller bearings for very rigid and smooth operation. VERSATILITY Pneumatic and Cordless Electric motor options allow for machine use in any environment or facility. Narrow head width enables use in tight spaces such as boiler water walls. Two different locking systems available – Collet or Wedge, giving you the best clamping capability for any application. Enhanced wedge design with an integrated wedge system and captured retaining springs allows quick change of wedge extensions and prevents loss of spring ‘Speed Wheel’ allows wedge expansion using a star-wheel, which is faster in confined spaces.
