Portable chamfering machines

Technical characteristics - Burr-free tube squaring machine - New brushless motor 18V - 220-240 V ~50/60Hz or 100-120 V ~60Hz - Accurate manual advance, gratuated vernier scale - Light and compact ...

Power: 1,100 W

Technical characteristics - Burr-free tube squaring machine - Mains motor 1100 W - 220-240 V ~50/60Hz or 120 V ~ 50/60Hz - Accurate manual advance, gratuated vernier scale - Light and compact (2.5 ...

Technical characteristics - Burr-free tube squaring machine - New brushless motor 18V - 220-240 V ~50/60Hz or 100-120 V ~60Hz - Accurate manual advance, gratuated vernier scale - Light and compact ...

Rotational speed: 50 rpm
Power: 30,000 kW
Chamfer width : 59.1 in

... standard carbide inserts. It can beveling thicknesses of tubes up to 4 ". The machine is equipped with a hydraulic motor and is connected to a group of 30kW. Precision is the key word that defines ...

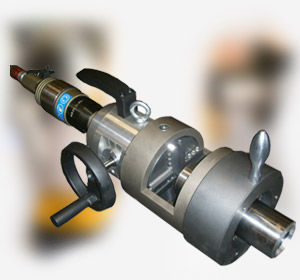

The pneumatic or electric powered SE series end prep tools are lightweighted and portable. They will perform repeatable quality weld preps on most metal pipes and tubes including stainless steel, from 10 mm (0,393”) ...

OD CLAMPING HEAVY DUTY FACING AND BEVELING MACHINES SE SERIES 25 mm (0.98") ID 90 mm (3.54") OD The machining capacity of the SE90-NG is 10 mm (0,394") to 90 mm (3,543") OD. SE90 ...

Rotational speed: 10,000 rpm - 10,000 rpm
Power: 0.5 kW - 0.9 kW
Chamfer width : 0 mm - 3 mm

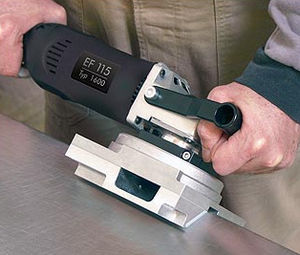

The compact and robust, handheld chamfering machines are particularly suitable for chamfering straight edges on flat workpieces even with outstanding burrs. Stable, screwed ...

Rotational speed: 14,000 rpm

Chamfer width and chamfer angle can be adjusted precisely and reproducible. Precise working thanks to great support edge. Indexable insert is simple to change and to adjust (4-side blade) and practices good, efficient economy. Pipe outer ...

Rotational speed: 13,000 rpm
Chamfer width : 2 mm
Chamfer angle: 45 °

Applications Pneumatic edge milling tool (pneumatic chamfering tool) for inside-chamfers and outside-chamfers as well as milling work pieces; in machine and plant engineering, sheet ...

Power: 400 W
Chamfer width : 10 mm
Chamfer angle: 30 °

BCM-mini2 BCM-mini2 is designed portable and lightweight so it can work by self-running without the caster. A big steel plate also can be beveled easily. Especially, BCM-mini2 shows a good performance in beveling ...

Power: 400, 740 W
Chamfer width : 20 mm - 38 mm

... motor. The great advantage of this type is that membrane walls down to a size of Ø20mm can be bevelled with tool tip crown milling cutters. The minimum membrane wall width is only 40,0mm! Technical details: ...

Power: 400, 740 W
Chamfer width : 20 mm - 63.5 mm

The external portable pipe bevel machine MF3-25 is used for pipe bevel of the pipe end in pipe welding applications. The portable machine is used for ...

Power: 740, 1,500 W
Chamfer width : 20 mm - 76.1 mm

Technical Details: Working range ID-OD: 12,5 - 76,1 mm Clamping range OD-OD: 20 - 76,1 mm Max. wall thickness: 15 mm Feed: 25 mm Weight: 10 kg with electric motor, 8,8 kg with pneumatic motor Weld prep: facing, V-prep, ...

Rotational speed: 11,000 rpm
Power: 450 W
Chamfer width : 3 mm

... electric circuit beveler has the capacity from 0 to 3 C x 2R and 3R (mild steel), 0 to 1.5 C x 2R (stainless steel) and chamfering angle of 45°. It runs on 220 V AC at 50 Hz, with 450 W rated power consumption and 30 ...

Rotational speed: 11,000 rpm
Power: 1,100 W
Chamfer width : 4 mm

Chamfering up to 3C stainless steel chamfering, and up to 7C mild steel chamfering

Rotational speed: 11,000 rpm
Power: 430 W
Chamfer width : 3 mm

Compact and light for speed chamfering Specifications Rated Current: 2 A / 4.5 A Chamfering Radius Capacity: 2R, 3R Capacity: 0C ~ 3C Chamfer Angle: 45° Voltage: 110 V AC 60 Hz / 220 V AC 50 Hz Mass ...

Rotational speed: 0 rpm - 32 rpm
Power: 1.2 kW - 1.8 kW

The portable pipe end preparation machines REB are setting new standards in the weld prepping of metal pipes. Take advantage of this latest technology to reduce your tool and manufacturing costs and to ...

Rotational speed: 0 rpm - 120 rpm
Power: 0.38 kW - 1 kW

« Lightweight and robust boiler pipe preparation machines »Prepare I/V/Y and U seam weld joint geometries in pipe ends made from high-alloy steel, low-alloy and carbon steel with the unique QTC® tool system. Pipe end ...

Rotational speed: 2,870 rpm
Power: 1,100 W
Chamfer width : 0 mm - 15 mm

... device at affordable rates. ACCON-S7-EasyLog software is available in several languages and permits a view of the operator interface in either of the six existing languages. Apart from German and English you have ...

Chamfer width : 6 mm - 38.1 mm

Plate Bevellers, Self Propelled, Portable - KBM-18® The Plate Bevellers, Self-Propelled, Portable - KBM-18® manufacture clean machined bevels with no thermal deformation on mild steel, stainless steel ...

Chamfer width : 6 mm - 38.1 mm

Gullco's Portable, Underside, Self-Propelled Plate Beveler KBM-18U® produces clean machined bevels with no thermal distortion on mild steel, stainless steel and aluminum plate from 1/4" (6.0 mm) to 1 1/2" (38.1 mm) thick. ...

Chamfer width : 8 mm - 50 mm

These plate edge bevellers are heavy duty and are easily portable and they are self-powered. The model KBM-28® can deliver clean bevels that are machined with precision carrying no distortion due to thermal effects on ...

Rotational speed: 1,400 rpm
Power: 0.75 ch
Chamfer width : 55 mm

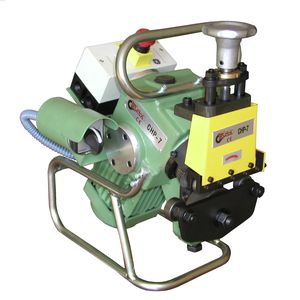

... thicknesses. Totally self-feed, the beveling machine CHP 7 will meet all your bevel requirements, especially for thin materials, from 4 mm to 8 mm thick and also for aluminum. High speed beveling ...

Rotational speed: 1,400 rpm
Power: 3 ch
Chamfer width : 55 mm

... steel industries. In short, it was created to optimize welding preparation processes. The beveler CHP 12 remains the most efficient and reliable beveling machine on the market. It ...

Rotational speed: 335 rpm - 670 rpm
Power: 5 ch
Chamfer width : 100 mm

... technologies in one: world unique portable milling and beveling machine with up to 100 mm thick plates. Suitable for duplex, super duplex, hardox, armox… The CHP 60 ...

Chamfer width : 0.3, 0.6, 0.5, 1, 2 mm

Mobile chamfering carriers composed of a rolling bearing, a carbide milling cutter, an interchangeable guide dening the chamfer or radius value and a linking component with exible coupling. The ...

Rotational speed: 2,000 rpm - 22,000 rpm
Power: 450 W

Portable device equipped with a 450-Watt motor with electronic speed regulator. Speed can be adjusted from 2 000 to 22 000 rpm. Flexible and quiet 1.2 m drive shaft with quick coupling system for chamfering carriers

Rotational speed: 2,000 rpm - 22,000 rpm
Power: 450 W
Chamfer width : 0 mm - 2 mm

Portable or workbench use Very simple adjustment Long cutter service-life The Kastor is a portable machine for chamfering very large workpieces or for use on a workbench ...

... -site welding applicationsContinuous good results for on-site pipe bevelling applications with Exact’s PipeBevel 360E you can easily make fast and accurate welding bevels to pipes in a variety of ...

... -site welding applicationsContinuous good results for on-site pipe bevelling applications with Exact’s PipeBevel 220E you can easily make fast and accurate welding bevels to pipes in a variety of ...

Power: 850 W
Chamfer width : 0.1 mm - 8.5 mm

... PLATE Height Adjustment: One-touch Spline Controller Adjustment Increments: Minimum 0.1 mm step Usages: Plate & Pipe's beveling for weld preparation Maximum Bevel range per angle: 0° ~ 90° Deg. / Thickness (inch) ...

Power: 1,080 W
Chamfer width : 0.1 mm - 15 mm

... PLATE Height Adjustment: One-touch Spline Controller Adjustment Increments: Minimum 0.1 mm step Usages: Plate & Pipe's beveling for weld preparation Maximum Bevel range per angle: 0° ~ 90° Deg. / Thickness (inch) ...

Power: 1,080 W
Chamfer width : 7.5 mm - 23.5 mm

Rotational speed: 190, 150 rpm
Power: 640, 430 W

... Specially designed for heat exchangers ( sanding - Desoldering and boring applications Ferrule ) on curves and bevels etc. The machines are already equipped with a kit of shaft and clamps that are able to work tubes ...

Power: 820, 1,200 W

The MB120 can be used to bend pipes from 1.1/4" (ID ø35mm) to 4" (OD 114mm). It has pneumatic or electrical motors and are lightweight, power-packed and handy. It has adopted trees, extension spindles and motors from 640W to 820W and ...

Rotational speed: 214 rpm - 495 rpm
Power: 1,350, 1,600 W

New ITM Foundation presents SL 400 P-E/6V pipe chamfering machine. The MOD. SL400 features either a pneumatic or electric motor. It can handle pipes and bends of up to 16" (outside diameter of 406.4 mm) ...

Standard equipment includes: milling head and three inserts, SW22 key, carrying case and user's manual.

Standard equipment includes: one milling head, 12 sintered carbide reversible cutting inserts, tools for assembly, built-in pipe roller guide, steel carrying case and user's manual.

Rotational speed: 2,000 rpm - 7,600 rpm
Power: 1,710 W

... handy deburring machine is designed for awkward, heavy parts, such as machine tables, frame constructions or large sheets of metal. Easy to handle, with good edge control. The EF 115 is also ideal for ...

Rotational speed: 28,000 rpm

Features: ♦ The design of two indexable inserts can speed up chamfering work significantly. ♦ Compact and lightweight body enhance operators work efficiency. ♦ The mini guide plate enables to chamfer in a limited space; ...

... versatile beveler - The special convertable table plate can switch between plate beveling and pipe beveling just by repositioning the guide rollers... A very popular versatile machine ...

Rotational speed: 12,000 rpm
Power: 900 W
Chamfer width : 0 mm - 21 mm

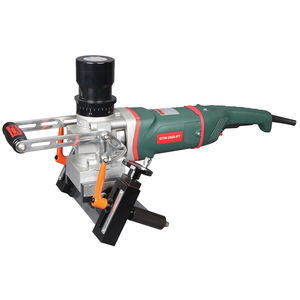

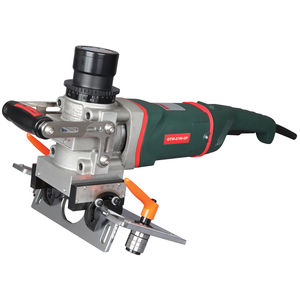

Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional ...

Rotational speed: 1,850 rpm - 3,350 rpm
Power: 1,800 W
Chamfer width : 12 mm

... Series of Portable Beveling Machines are tailor-made to meet the requirements of every operator. The new EKF 500 & 600 series from BDS is designed for maximum performance and optimal ...

Rotational speed: 2,500 rpm - 8,500 rpm
Power: 75 W
Chamfer width : 5 mm

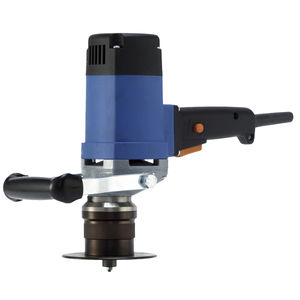

Designed for beveling and deburring of workpieces and holes. Specially developed for straight edges, contours and cutouts to be beveled with ease. Durable and sturdy design without any compromises. Variable electronic ...

Rotational speed: 720 rpm
Power: 1.4 kW

... mechanism makes it easy to change the carrier and cutting direction. The TruTool TKF 700 is the lightest model in its class. The machine can be easily guided manually in a vertical, horizontal, or upside-down position, ...

Rotational speed: 0 rpm - 14 rpm

... end prep machine tool kit, the EP 424 is a precision I.D. tool, designed to face flanges, bevel, compound bevel, J prep, face and counterbore pipe, fittings and valves. Features Safe cold cutting ...

... mounting range of .84 in (21.34mm) up to 2.375 in (60.33mm) OD, making it the perfect choice for small diameter severing and beveling of pipe and tubing. The MC2A quickly splits and easily mounts on in-line piping systems, ...

Rotational speed: 500 rpm
Power: 65 W

... handling, especially with large workpieces Suitable for additional activities during the main production time on CNC machine tools Cold-insulating handle with speed regulator angle version for deburring ...

Recommended by plastic pipe manufacturers. Releasable grips. Capacity: Ø 32 to 250 mm pipe. Thickness: up to 12 mm. Chamfering angle: 15° on plastic pipes. Pivoting counter-blade adjustment.
