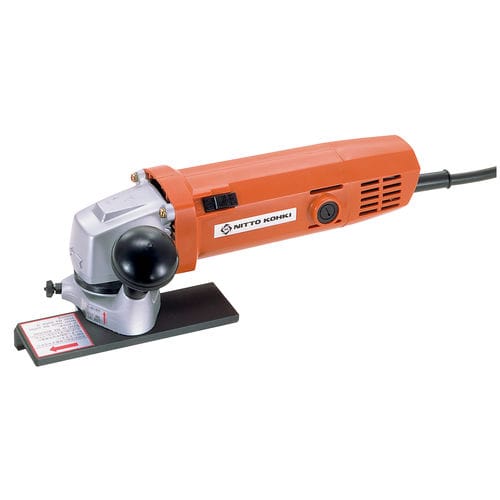

Electric chamfering machine MB-03A
hand-heldmobiledesk

electric chamfering machine
electric chamfering machine
electric chamfering machine
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
hand-held, mobile, desk
Applications
for pipe, sheet metal, weld preparation, for small parts, plate, precision, edge, manual, radius, for internal and external edges, bar, for pipes, for thin workpieces, for pipelines
Other characteristics
manual feed, stainless steel, straight edges, heavy-duty, fixed-angle, for thick pieces
Power

430 W
(0.58 hp)

Rotational speed

11,000 rpm
(69,115.04 rad.min-1)

Chamfer width

3 mm, 4 mm
(0.1 in, 0.2 in)

Chamfer angle

45 °

Description

Compact and light for speed chamfering Specifications Rated Current: 2 A / 4.5 A Chamfering Radius Capacity: 2R, 3R Capacity: 0C ~ 3C Chamfer Angle: 45° Voltage: 110 V AC 60 Hz / 220 V AC 50 Hz Mass (Weight): 2.5 kg Rated Revolutions: 7.100 min-1 Standard Accessories: Carbon Brush Ass’y: 1 set. 3 and 4 mm Hex.Socket Skrew Key: each 1 pc. Spanner T-9F: 1 pc.

VIDEO
