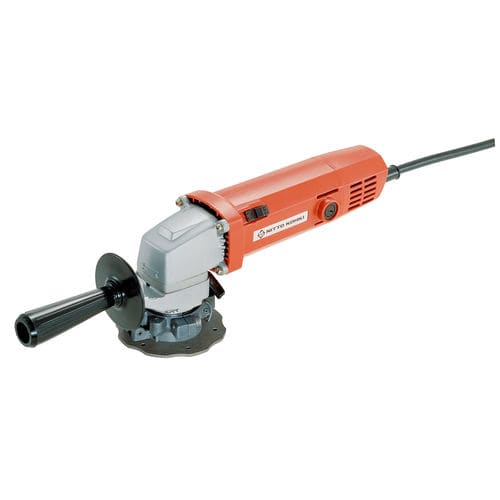

Electric chamfering machine ECB-0203
hand-heldsheet metalfor pipes

Electric chamfering machine - ECB-0203 - Nitto Kohki Europe - hand-held / sheet metal / for pipes
Electric chamfering machine - ECB-0203 - Nitto Kohki Europe - hand-held / sheet metal / for pipes
Add to favorites
Compare this product
Go to the Nitto Kohki Europe website for more information

Characteristics

Operation
electric
Type
hand-held
Applications
sheet metal, for pipes, plate, precision, edge, manual, radius, for internal and external edges, bench, for pipelines
Other characteristics
with adjustable angle, stainless steel, angular adjustment, external grip, inside grip, straight edges, elbow, single-head
Power

450 W
(0.61 hp)

Rotational speed

11,000 rpm
(69,115.0384 rad.min-1)

Chamfer width

3 mm
(0.1 in)

Chamfer angle

45 °

Description

The NITTO ECB-0203 electric circuit beveler has the capacity from 0 to 3 C x 2R and 3R (mild steel), 0 to 1.5 C x 2R (stainless steel) and chamfering angle of 45°. It runs on 220 V AC at 50 Hz, with 450 W rated power consumption and 30 min duty and weighs 2.5 kg. It includes 2.5 m power cord, 12.7 hole insert, insert set screw, 5 mm Hex.Socket Skew Key and 8x10 spanner.

VIDEO
