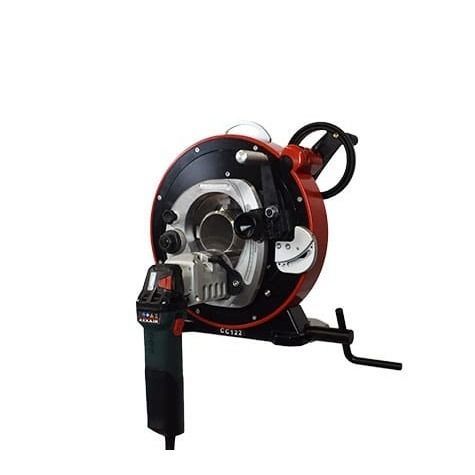

Electric chamfering machine GA122 series

portableorbitalfor weld seam preparation

Overview
The GA122 orbital beveling machine is engineered for precise, efficient tube weld preparation. Tube OD range: 0.625 - 4.5 in / 15 - 119 mm. High-speed milling heads with carbide inserts remove material significantly faster than traditional HSS inserts. The lubricant-free patented process eliminates the need to clean tubes before welding. The GA range uses the same frame as AXXAIR CC orbital cutting machines and can be converted to cutting or welding machines via conversion kits, providing a versatile solution for tube preparation.

Key features

• Tube OD range: 0.625 - 4.5 in / 15 - 119 mm.
• High-speed milling heads equipped with carbide inserts for faster material removal and accurate bevels.
• Lubricant-free patented process — no tube cleaning required before welding.
• Same frame as AXXAIR CC orbital cutting machines; convertible to cutting or welding via conversion kits.
• Stainless-steel concentric clamping system with multiple contact points to increase beveling range and prevent tube distortion.
• Optional automatic rotation and clamping system for higher repeatability and productivity.

Product advantages

• Concentric stainless-steel clamping with many contact points increases bevel quality and prevents tube deformation; stainless jaws protect against contamination.
• Distinctive rotation wheel ensures smooth rotation, extending carbide insert life and improving bevel quality.
• Optional automatic rotation and clamping increases repeatability and productivity for series work.
• Carbide inserts offer higher, faster performance than HSS; standard available bevel types: V (30° / 37.5° / 45°) and J (10°).
• Spring-loaded penetration lever and tracking system engage the blade consistently, extending insert life and improving safety and ease of operation.
• Models can be fitted with support benches for longer tubes and conversion kits for cutting, beveling and welding operations.

Technical specifications

• Model: GA122
• Part No.: GA122-M1 / GA122-M2
• Tube OD range: 0.625 - 4.5 in / 15 - 119 mm
• Bevelling wall thickness capacity*: up to 0.3 in / 8 mm
• Milling head rotational speed: 2050 - 7300 rpm
• Electric motor power: 1700 W
• Voltage: 110 or 220 V
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 99 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 42 kg / 93 lb
• Machine dimensions: 443 x 541 x 304 mm
• Packing dimensions: 630 x 450 x 720 mm
• Packed weight: 48 kg / 106 lb
• *depending on insert type used and tube material
