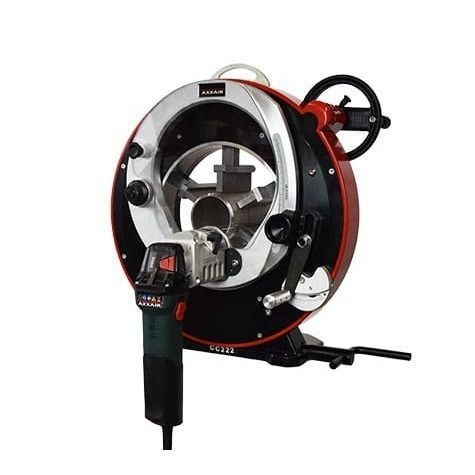

Electric chamfering machine GA222

portableorbitalfor weld seam preparation

Overview
The GA222 orbital beveling machine is engineered for precise, high‑speed tube weld preparation. Tube OD range: 2.35 – 8.625" / 55 – 228 mm. High‑speed milling heads with carbide inserts remove material far faster than traditional HSS inserts. The lubricant‑free, patented process removes the need for tube cleaning before welding, reducing cycle time and improving throughput. The GA222 shares the same frame as AXXAIR CC orbital cutting machines and can be converted to cutting or welding machines with dedicated conversion kits, offering a modular solution for tube preparation.

Product Advantages

• Stainless‑steel concentric clamping system with multiple contact points expands beveling range and prevents tube distortion; stainless jaws protect tubes from contamination.
• Distinctive rotation wheel ensures smooth rotation, extending carbide insert life and enhancing bevel finish quality.
• Optional automatic rotation and clamping system available to increase repeatability and productivity.
• Carbide inserts deliver higher cutting speed and longer life than HSS; standard profiles include V‑bevels (30° / 37.5° / 45°) and J‑bevel (10°).
• Spring‑loaded penetration lever and tracking system engage the saw blade for consistent bevel depth, improving safety and ease of operation.
• GA models support optional support benches for long tubes and conversion kits to perform cutting, beveling and welding on a single frame.

Specifications
Description: GA222
Part No.: GA222-M1 / GA222-M2
Diameter range: 2.35 – 8.625" / 55 – 228 mm
Beveling wall thickness capacity*: Up to 0.3" / 8 mm
Milling head rotational speed: 2050 – 7300 rpm
Electric motor power: 1700 watt
Voltage: 110 or 220 volt
Frequency: 50 / 60 Hz
Max acoustic radiation: 99 dB
Vibration level: < 2.5 m/s2
Unit weight: 57 kg / 126 lbs
Machine dimensions (W x D x H): 548 x 594 x 304 mm (21.57 x 23.38 x 11.96")
Packing dimensions: 950 x 550 x 850 mm (37.40 x 21.65 x 33.46")
Packing weight: 64 kg / 141 lbs
*Depending on type of inserts used and tube material

Technical specifications

• Model: GA222
• Tube OD range: 2.35 – 8.625" (55 – 228 mm)
• Beveling wall thickness capacity: up to 0.3" (8 mm)
• Milling head speed: 2050 – 7300 rpm
• Motor power: 1700 W
• Voltage: 110 or 220 V
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 99 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 57 kg (126 lbs)
• Machine dimensions (W x D x H): 548 x 594 x 304 mm
• Packing dimensions: 950 x 550 x 850 mm
• Packing weight: 64 kg (141 lbs)
• Standard inserts: Carbide inserts in V (30° / 37.5° / 45°) and J (10°)
• Lubricant‑free patented process
• Compatible with conversion kits for cutting and welding; optional automatic rotation/clamping
