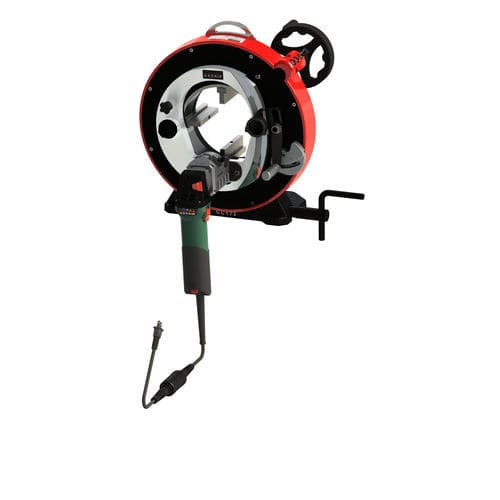

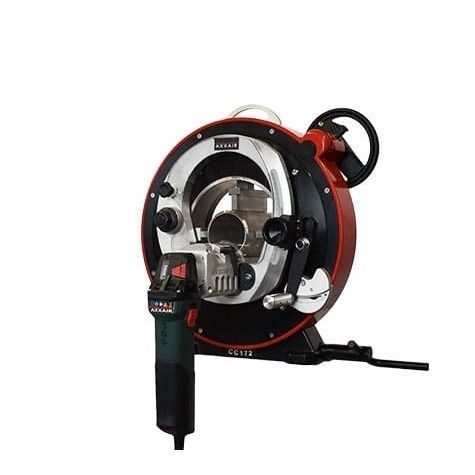

Electric chamfering machine GA172

portableorbitalfor tubes

Product overview
The GA172 orbital beveling machine is engineered for precise, efficient tube weld preparation. Tube OD range: 1.3 – 6.625" / 33 – 173 mm. High-speed milling heads with carbide inserts remove material up to 10× faster than HSS, delivering smooth, accurate bevels. The patented lubricant-free process eliminates pre-weld tube cleaning, reducing cycle time and improving productivity. Built on the GA frame shared with AXXAIR CC orbital cutting machines, the unit can be converted to a cutting or welding machine via conversion kits.

Key features

• Stainless-steel concentric clamping system with multiple contact points to expand beveling range and prevent tube distortion; stainless-steel jaws protect tube surfaces from contamination.
• Distinct rotation wheel for smooth rotation, extending carbide insert life and improving bevel quality.
• Optional automatic rotation and clamping system for higher repeatability and productivity.
• High-speed carbide inserts for up to 10× faster material removal vs HSS; available in V-bevels (30° / 37.5° / 45°) and J-bevel (10°).
• Spring-loaded penetration lever and tracking system engage the saw blade for consistent, low-effort beveling, improving operator safety and insert life.
• Lubricant-free patented process removes need for tube cleaning before welding.

Specifications

• Description: GA172
• Part no.: GA172-M1 / GA172-M2
• Tube OD range: 1.3 – 6.625" / 33 – 173 mm
• Beveling wall thickness capacity*: up to 0.3" / 8 mm
• Milling head speed: 2050 – 7300 rpm
• Motor power: 1700 W
• Voltage: 110 or 220 V
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 99 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 49 kg / 108 lbs
• Machine dimensions (L×W×H): 493 × 566 × 304 mm / 19.40 × 22.28 × 11.96"
• Packing dimensions: 630 × 450 × 720 mm / 24.80 × 17.72 × 28.35"
• Packing weight: 54 kg / 119 lbs
• *Depending on insert type and tube material
