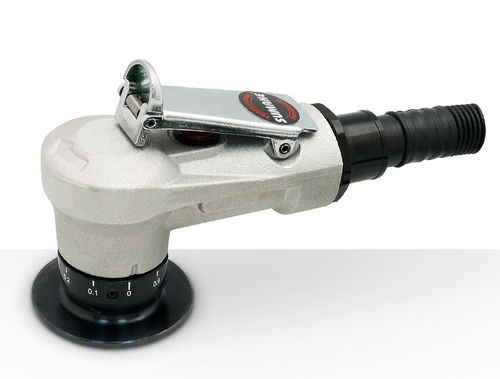

Pneumatic chamfering machine ST-7211

hand-heldsheet metalfor wood

Features: ♦ The design of two indexable inserts can speed up chamfering work significantly. ♦ Compact and lightweight body enhance operator’s work efficiency. ♦ The mini guide plate enables to chamfer in a limited space; besides, either straight or curved edges can be chamfered. ♦ Newly developed motor with energy-saving has more output power, yet low air consumption. ♦ Durable motor has less maintenance which is most cost-effective. ♦ The part of Indexable Insert can be easily replaced. Application: ♦ Die and mold manufacturing. ♦ Machining. ♦ Sheet-metal processing. Minimum Plate Thickness 1.5mm Minimum Radius 3R mm Minimum Hole Diameter for Chamfering Ø 6.8 mm Minimum chamfering Depth 6 mm Free Speed 28,000 r.p.m Chamfer Angle 45 degree Chamfering Capacity Mild Steel 0C~1C Overall Length 5-8/25"(135mm) Air Inlet 1/4" Air hose 3/8” Air Consumption 2 cfm Net Weight 1.1 lbs(0.5 kgs) Packing: 1set/box, 10sets/Ctn/8 kgs/1.1 cuft
