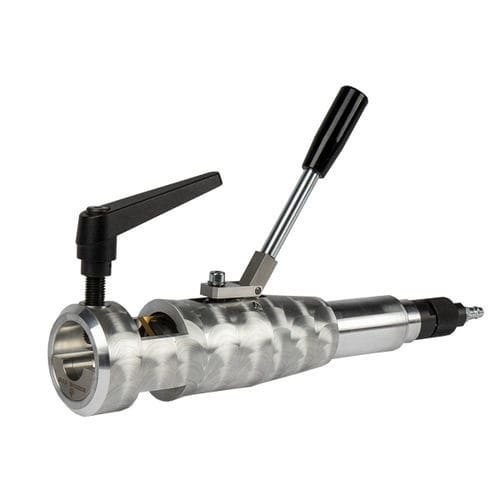

Pipe beveling machine MF3-R

pneumaticelectricportable

• Working Range ID-OD: 0,354 - 1,752" (9-44,5 mm)
• Pipe wall thickness: max. 10 mm
• Spark-free and low noise
• High repeatability

The MF3-R is used for the preparation of pipe ends, i.e. to cut edges of individual pipes or membrane walls. Because of its small dimension it is particularly suitable for the preparation inside membrane wall ports.

Working range ID-OD - 0,354" - 1,752" (9 - 44,5 mm)
Clamping range OD-OD - 0,472" - 1,752" (12 - 44,5mm)
Max. wall-thickness - 0,393" (10 mm)
Feed - 0,590" (15 mm)
Weight with pneumatic motor - 4,8 kg
Weight with electric motor - 6,0 kg
Weld prep - facing, V-prep
Tooling - tool bits, TiN inserts, custom bits
Body - lightweight housing

Air pressure - 6 bar (87psi)
Air consumption - 0,96 m³/min (33,9 cfm)
Air hose connection - 1/4"
Features - speed control

Features - speed adjustment

MAXIMUM PRODUCTIVITY
Special developed inserts as cutting tools can be used for all types of beveling.

VARIOUS TOOLS
Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
