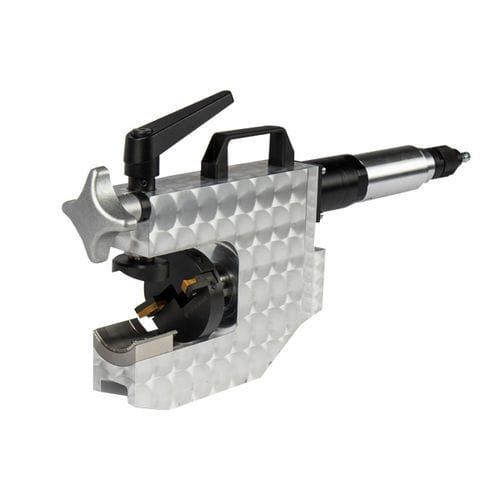

Mobile beveling machine MF3-25 XL

weld preparationfor thick piecesvariable-speed

Working Range ID-OD: 0,492 - 2,996" (12,5 - 76,1 mm) Pipe wall thickness: max. 15 mm Spark-free and low noise High repeatability The pipe beveler MF3-25 XL has a working range from ID 12,5 mm to OD 76,1 mm and can be equipped with an angled drive on request. When using the optional angle motor, the machine can be used in confined spaces. Working range ID-OD - 0,492" - 2,996" (12,5 - 76,1 mm) Clamping range OD-OD - 0,787" - 2,996" (20 - 76,1 mm) Max. wall-thickness - 0,59" (15 mm) Feed - 0,98" (25 mm) Weight with pneumatic motor - 8,8 kg Weight with electric motor - 10 kg Weld prep - facing, V & J-prep, counter boring Tooling - tool bits, TiN inserts, custom bits Body - lightweight housing Air pressure - 6 bar (87psi) Air consumption - 0,96 m³/min (33,9 cfm) Air hose connection - 1/4" Features - speed control BEVELING OF MEMBRANE WALLS The big advantage of the MF3-25 XL is that membrane walls down to a size of Ø 20mm can be bevelled with tool tip crown milling heads. The minimum membrane wall width is only 37,0 mm. VARIOUS TOOLS Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
