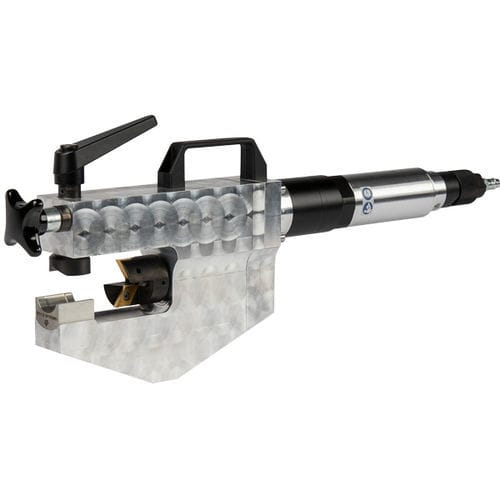

Motorized pipe cutting and beveling machine MF2-25

portable

Description
The MF2-25 pipe beveler provides versatile membrane wall machining using indexable crown cutters up to Ø 38.0 mm. Minimum membrane wall width is 40.0 mm. Designed for on-site weld preparation on steel, stainless steel, duplex and high-alloy materials.

Key features

• Working range ID–OD: 10–38 mm (0.39"–1.496")
• Clamping range OD–OD: 20–38 mm (0.787"–1.496")
• Max wall thickness: 15 mm (0.59")
• Spark-free, low-noise operation
• High repeatability and ergonomic single-operator handling
• Insert crown milling heads for membrane wall beveling

Technical details

• Working range ID–OD: 10–38 mm (0.39"–1.496")
• Clamping range OD–OD: 20–38 mm (0.787"–1.496")
• Max. wall thickness: 15 mm (0.59")
• Feed: 25 mm (0.98")
• Weight with pneumatic motor: 6.4 kg
• Weight with electric motor: 7.6 kg
• Weld preparations: facing, V & J-prep, counter boring
• Materials: steel, stainless steel, duplex, high-alloyed steels
• Tooling: tool bits, TiN inserts, custom bits; insert holders and tool holders available
• Body: lightweight aluminium housing

Available drives
MF2-25 with pneumatic motor
Power: 850 W (1.2 HP)
Air pressure: 6 bar (87 psi)
Air consumption: 0.96 m³/min (33.9 cfm)
Air hose connection: 1/4"
Features: speed control

MF2-25 with electric motor
Power consumption: 1,500 W (110V/230V)
Features: restart and overload protection, speed adjustment, torque control

Product overview

• Item No. 091504433 — Pipe Beveler MF2-25 with pneumatic motor
• Item No. 091504434 — Pipe Beveler MF2-25 with electric motor 230V

Advantages

• Beveling of membrane walls up to Ø 38 mm with crown milling heads; minimum membrane wall width 40 mm
• Lightweight aluminium housing for single-person operation
• Wide tooling options for perfect weld edge preparation: tool bits, TiN inserts and custom bits

Technical specifications

• Working range ID–OD: 10–38 mm (0.39"–1.496")
• Clamping range OD–OD: 20–38 mm (0.787"–1.496")
• Max wall thickness: 15 mm (0.59")
• Feed: 25 mm (0.98")
• Weight (pneumatic motor): 6.4 kg
• Weight (electric motor): 7.6 kg
• Pneumatic power: 850 W (1.2 HP); Air pressure: 6 bar; Air consumption: 0.96 m³/min
• Electric power consumption: 1,500 W (110V/230V)
• Air hose connection: 1/4"
• Weld preps: facing, V & J-prep, counter boring
• Materials: steel, stainless steel, duplex, high-alloyed steels
• Tooling: tool bits, TiN inserts, custom bits; insert holders and tool holders available
• Body: lightweight aluminium housing
