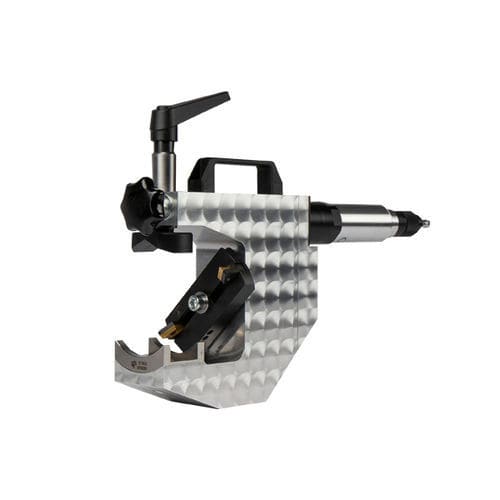

Pneumatic beveling machine MF4

electrichand-heldpipe

Working Range ID-OD: 0,984 - 5,236" (25 - 133 mm) Pipe wall thickness: max. 25 mm Spark-free and low noise High repeatability The largest externally clamping pipe beveling machine MF4 can also be equipped with an angled drive on request. This allows the machine to be used in special situations that require a compact design in addition to a large working and clamping range. Working range ID-OD - 0,984" - 5,236" (25 - 133 mm) Clamping range OD-OD - 1,496" - 5,236" (38 - 133 mm) Max. wall-thickness - 0,984" (25 mm) Feed - 0,590" (15 mm) Weight with pneumatic motor - 13 kg Weight with electric motor - 14,2 kg Weld prep - facing, V & j-prep, counter boring Tooling - tool bits, TiN inserts, custom bits Body - lightweight housing Air pressure - 6 bar (87psi) Air consumption - 0,96 m³/min (33,9 cfm) Air hose connection - 1/4" Features - speed control MAXIMUM PRODUCTIVITY Special developed inserts as cutting tools can be used for all types of beveling. VARIOUS TOOLS Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
