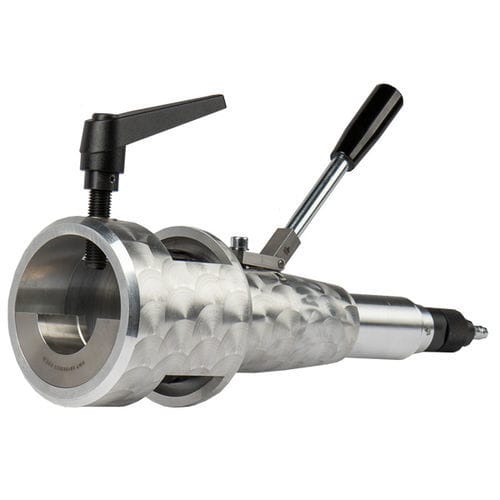

Electric beveling machine MF4-R

pneumaticmobileorbital

Working Range ID-OD: 1,181 - 3,5" (30 - 88,9 mm) Pipe wall thickness: max. 10 mm Perfect pipe beveling and pipe edge preparation Spark-free and low noise High repeatability The MF4-R is used for beveling pipe ends or membrane walls. Due to its low weight, the machine can be operated by only one person and is suitable for both workshop and construction site use. The MF4-R pipe beveling machine can be optionally equipped with a pneumatic or an electric motor. Working range ID-OD - 1,181" - 3,5" (30 - 88,9 mm) Clamping range OD-OD - 1,744" - 3,5" (48,3 - 88,9 mm) Max. wall-thickness - 0,393" (10 mm) Feed - 0,590" (15 mm) Weight with pneumatic motor - 5,9 kg Weight with electric motor - 7,0 kg Weld prep - facing, V & J-prep, counter boring Tooling - tool bits, TiN inserts, custom bits Body - lightweight housing Air pressure - 6 bar (87psi) Air consumption - 0,96 m³/min (33,9 cfm) Air hose connection - 1/4" Features - speed control MAXIMUM PRODUCTIVITY Special developed inserts as cutting tools can be used for all types of beveling. VARIOUS TOOLS Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.
