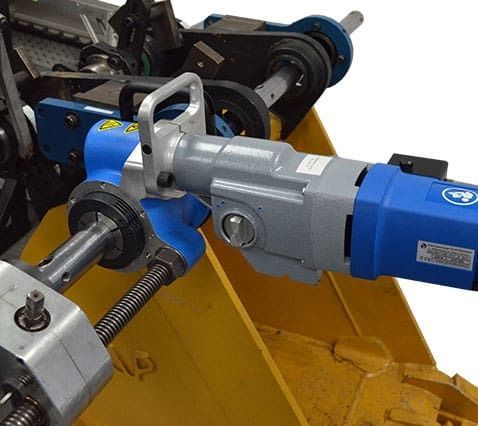

Facing portable line boring machine BB4500

Product Overview
CLIMAX BB4500 Line Boring Machine provides field-proven boring capability in a compact, cost-effective package. Developed as an alternative to the BB5000, the BB4500 delivers precision boring and flexible mounting for machining in confined or restricted workspaces.

Key Features

• Quick and easy setup — Modular components with cast-iron set-up cones and spherical bearing mounts enable fast installation; typical setup time for an experienced operator is 30 minutes or less.
• High torque — Over 100 ft·lb (135 N·m) at the bar; rotational drive unit with 4:1 worm-gear reduction increases torque across speeds.
• Compact footprint — Designed for cramped or restricted spaces where larger machines cannot be used.
• Through-bar design — Rotational drive and feed units can be mounted anywhere along the bar, including separately, for maximum mounting flexibility.
• Motor options — Electric (reversible), hydraulic or pneumatic motors; fast two-bolt motor change-out; available servo conversion kits.
• Bar and tooling — Keyed, chromed 1.75" (44.5 mm) bar standard, optional 1.25" (31.8 mm); bar lengths 4–20 ft (1219.2–6096 mm) with 1/2" or 12 mm square-broached tooling holes.
• Field-ready components — Proven rotational drive and axial feed units with patented mounting system for reliable on-site operation.

Accessories (examples)

• Servo motor conversion kit (1.5 kW and 3.1 kW)
• Bore measuring tool
• Digital bore measuring caliper
• Magnetic back-travel dial indicator

Documents (examples)

• BB4500 product brochure

Technical specifications

• Bar diameter: 1.75" standard; optional 1.25" (44.5 mm; optional 31.8 mm)
• Boring diameter range: 1.5 – 10" (38.1 – 254 mm)
• Max stroke: 36" (914.4 mm)
• Torque at bar: 417 ft·lb (hydraulic) / 565.4 N·m
• Power options: Electric, Pneumatic, Hydraulic
