Welding portable boring and welding machine BW2600

Product description
The CLIMAX BW2600 Auto Bore Welder is a compact, field-ready bore welding unit engineered for controlled, repeatable restoration and repair of bores in heavy equipment and line-boring applications. It is compatible with MIG wire-feed systems and built for straightforward setup and service.

Integration and control
The BW2600 integrates with existing MIG wire feed systems and provides advanced bore welding control: cam-actuated skip/fill with burn-back control, fully adjustable mechanical step, reversible rotation and a step-lockout for accurate face welding. An optional remote pendant enables precise remote control of rotation, weld start/stop, arc interrupt and speed adjustments.

Product advantages

• Precise torch alignment — Swivel head with ball-and-seat arrangement for repeatable torch positioning.
• Automated skip/fill — Nock-driven programming of WELD ONLY or NO WELD bore sections (up to 180°) with full rotation between sections.
• Reverse rotation — Simplifies multi-pass welding by alternating uphill/downhill passes.
• Remote pendant control — Operator can jog rotation, start/stop welds and adjust speed from a safe, convenient position.
• Flexible operation — Free-position spindle for quick torch positioning and consumable changes; adjustable step feed to optimize bead placement and reduce end voids.
• Run mode — Worm-gear knob for incremental axial start-point adjustments.

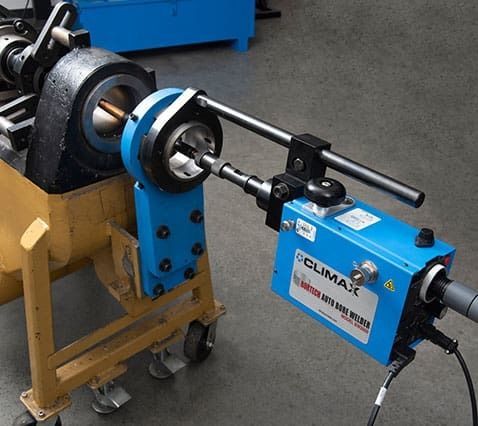

• Boring Bar Interface Kit — Fast alignment and attachment to CLIMAX line boring systems for quick turnover between welding and boring.
• Adjustable non-magnetic base — Mounts to a variety of workpieces when a boring bar is not used.

Specifications
SPECIFICATIONS | INCH | METRIC
Axial Travel | 9" | 228.6 mm
Wire Diameter Range | 0.030 – 0.045" | 0.76 – 1.14 mm
Step Range/Pitch | 0.050 – 0.175" | 1.27 – 4.45 mm per rev
Rotational Direction | Reversible | Reversible
Auto-Skip | Skip / Fill | Skip / Fill
Standard Torch Range | 0.88 – 12" | 22.4 – 304.8 mm

Technical characteristics

• Axial Travel: 9" / 228.6 mm
• Wire Diameter Range: 0.030 – 0.045" (0.76 – 1.14 mm)
• Step Range/Pitch: 0.050 – 0.175" (1.27 – 4.45 mm per rev)
• Rotational Direction: Reversible
• Auto-Skip Mode: Skip / Fill (cam actuated, up to 180° sections)
• Standard Torch Range: 0.88 – 12" (22.4 – 304.8 mm)
• Features: burn-back control, fully adjustable mechanical step, step lockout, free position and run modes, hand-held pendant control
• Mounting: Adjustable non-magnetic base; Boring Bar Interface Kit for CLIMAX line boring integration
