Welding portable boring and welding machine BW3000

Overview

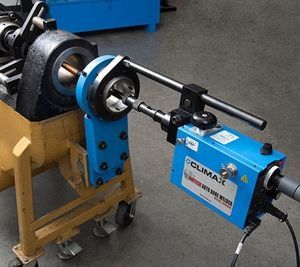

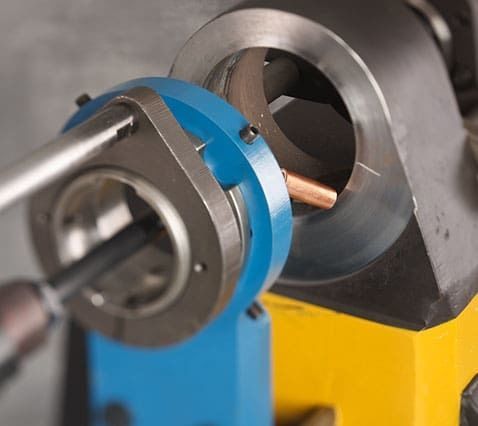

The CLIMAX BW3000 Auto Bore Welder is an automated step-welding machine for restoring and rebuilding worn or damaged bores. It reduces operator variability and delivers repeatable bead placement for field and shop repair operations.

Performance & Application
Designed for maintenance and machining teams, the BW3000 provides controlled, consistent weld deposition for bores in heavy equipment, industrial components and on-site repairs. Automation shortens weld cycle time and reduces rework compared with manual bore welding.

Product Advantages

• Offset head enables torch adjustment without changing torch angle to maintain correct welding geometry.
• Centralized control box for step size, rotation speed and direction, wire feed rate and arc voltage; includes arc interrupt, contactor control, gas purge and extended Auto-Skip functions.
• Consistent weld beads reduce cutting-tool wear and can lower cutting time by up to 50%.
• Infinitely adjustable step for bead placement from 0.040 to 0.220 in (1.0 to 5.6 mm).
• Wire feeder options (shop-style or enclosed), push-pull systems and wire straighteners support exotic alloys and small-diameter wires.
• Auto-Skip to bypass keyways or square areas; Pie mode for localized oblong wear; carriage return for one-way uphill or downhill welding; reversible rotation.
• BB5000 interface kit with spherical clamp collar for quick alignment and reduced transition time between welding and boring.
• Adjustable non-magnetic mounting base for attachment to workpieces when not using a boring bar.
• Remote feed-control, Emergency-Stop and Auto-Stop enhance operator safety and process control.

Specifications
SPECIFICATIONS | INCH | METRIC
Axial Travel | 6 or 12 in | 152.4 or 304.8 mm
Wire Diameter Range | 0.023–0.045 in | 0.58–1.14 mm
Step Range/Pitch | 0.040–0.220 in | 1.0–5.6 mm
Rotational Direction | Reversible | Reversible
Auto-Skip | Auto-Skip, Pie Mode & Carriage Return | Auto-Skip, Pie Mode & Carriage Return
Torch Range | 0.50–54 in | 12.7–1371.6 mm

Notes
The BW3000's automated step-welding minimizes operator variability and supports a wide range of wire types via optional feeders and push-pull/straightener systems. Available accessories and documentation include BB5000 kit, mounting bases and technical manuals.

Technical specifications

• Model: BW3000 Auto Bore Welder (CLIMAX)
• Axial travel options: 6 or 12 in (152.4 or 304.8 mm)
• Wire diameter range: 0.023–0.045 in (0.58–1.14 mm)
• Step range: 0.040–0.220 in (1.0–5.6 mm)
• Torch range: 0.50–54 in (12.7–1371.6 mm)
• Rotational direction: reversible
• Control features: centralized control box (step size, speed, direction, wire feed, arc voltage), arc interrupt, contactor control, gas purge, Auto-Skip
• Mounting: adjustable non-magnetic mounting base; BB5000 interface kit available
• Safety: remote feed-control, Emergency-Stop, Auto-Stop
