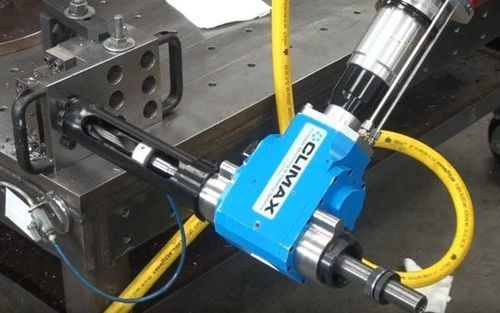

Pneumatic drill PD3000

Overview
The CLIMAX PD3000 portable pneumatic drill delivers high-torque drilling for fast, efficient hole-making in demanding industrial environments. Built for mobility and productivity, the PD3000 is suitable for field and shop use where precision, repeatability and uptime are required.

Product Advantages

• POWER
  • 3.0 HP pneumatic motor providing approximately 30% more power than comparable drills.
  • Capable of drilling holes up to 1.5 in (38.1 mm) diameter with faster spindle speed under cut and higher metal removal rates.
  • Designed to cut through tough materials, including HY80 steel.
• RELIABILITY
  • High-quality gearset fully supported by two bearings for extended service life under heavy use.
  • Integral clutch system protects the tool during stall conditions and increases uptime versus shear-pin designs.
  • Dedicated chip wiper and innovative shut-off mechanism reduce gearbox contamination and protect internal components.
  • Automatic self-cycling retract system: depth collar sets hole depth and triggers automatic retract; retracts up to 10× faster than feed rate.
  • Manual retract available for chip clearance.
  • Compatible with common air-feed drill bushings and existing drill templates.
• SAFETY
  • Low pressure drop-out feature prevents unintended restarts after loss of supply air pressure.
  • Compact design enables quick setup, transport and storage.

Specifications
SPECIFICATIONS
INCH | METRIC
Feed Rate: 0.003 or 0.006 ipr | 0.076 or 0.152 mmpr
Maximum Cutting Depth: 6.5 in | 165.1 mm
Spindle Size: #3 Morse taper | #3 Morse taper
Drill Size: 0.69 – 1.5 in | 1.75 – 38.1 mm
Power Option: 3 HP | 3 HP

Technical features

• Brand: CLIMAX
• Model: PD3000
• Motor: 3.0 HP pneumatic motor
• Drilling capacity: up to 1.5 in (38.1 mm)
• Drill size range: 0.69 – 1.5 in (1.75 – 38.1 mm)
• Spindle: #3 Morse taper
• Maximum cutting depth: 6.5 in (165.1 mm)
• Feed rates: 0.003 or 0.006 in/rev (0.076 or 0.152 mm/rev)
• High-torque design for heavy-duty fabrication, maintenance and repair
• Integral clutch system to prevent damage in stall conditions
• Dedicated chip wiper and shut-off mechanism to reduce gearbox contamination
• Automatic self-cycling retract with depth collar; manual retract for chip clearance
• Compatible with common air-feed drill bushings and templates
• Low pressure drop-out safety feature
• Compact, portable design for easy setup, transport and storage
