Pneumatic lapping machine VM1000

portableprecision

Overview

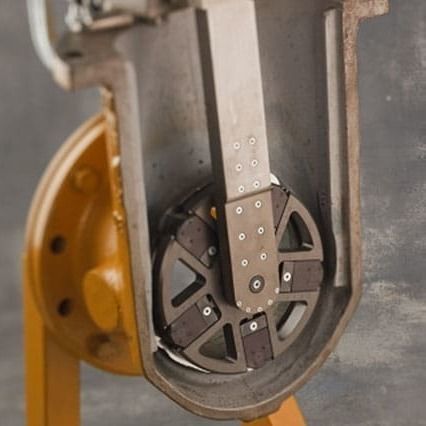

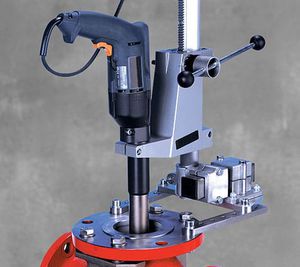

The CLIMAX VM1000 Series Valve Grinding & Lapping Machine is a portable precision solution for in-field and shop valve repair. It grinds and laps gate and swing check valve seats to restore sealing surfaces to original manufacturer specifications or better. A tilting adapter allows quick adjustment of grinding pressure to reduce setup time, extend valve service life and minimize downtime in power generation, oil & gas, refining and industrial applications.

Availability
Models VM1350, VM1500 and VM1600 are available for rental only; other models may be supplied per quotation.

Product advantages

• PERFORMANCE
  • Robust drive system uses a drive chain up to three sizes larger than typical competitors; MTBF approximately 10,000 hours.
  • Five planet arms ensure all discs contact the work surface, eliminating high and low spots on valve seats.
  • High-quality abrasives can reduce grinding time by up to 50%.
• VERSATILITY
  • Adhesive media discs formulated for secure hold in use and easy removal after use.
  • Quick changeover between electric and pneumatic power by loosening a single clamping bolt.
  • Configurations cover seat diameters from 1.25 to 24 in (32–600 mm); submerging depth up to 39 in (1000 mm).
  • Simple change from grinding to lapping by swapping discs.
• RELIABILITY
  • Rigid planet arms minimize machine chatter for a uniform finish.
  • Sealed planet arm bearings prevent ingress of grinding grit and increase bearing life.
  • Planet arms preloaded and preset within 0.000079 in (0.002 mm) for improved flatness.
  • Modular components and factory-sealed bearings enable fast setup and grinding head changes.

Specifications (table)
SPECIFICATIONS | Seat diameter range | Submerging depth | Valve type | Power option
VM1150 | 1.25–6 in (32–150 mm) | 16–18 in (400–450 mm) | Gate or swing check | Electric or pneumatic
VM1350 | 1.5–14 in (40–350 mm) | 24 in (600 mm) | Gate or swing check | Electric or pneumatic
VM1600 | 1.5–24 in (40–600 mm) | 39 in (1000 mm) | Gate or swing check | Electric or pneumatic

Technical specifications

• Series: VM1000 (models VM1150, VM1350, VM1600)
• Seat diameter ranges: VM1150 = 1.25–6 in (32–150 mm); VM1350 = 1.5–14 in (40–350 mm); VM1600 = 1.5–24 in (40–600 mm)
• Submerging depth: VM1150 = 16–18 in (400–450 mm); VM1350 = 24 in (600 mm); VM1600 = 39 in (1000 mm)
• Valve types supported: gate and swing check valves
• Power options: electric or pneumatic (quick changeover)
• Tilting adapter included for rapid grinding pressure adjustment
• Drive: heavy-duty drive chain, MTBF ≈ 10,000 hours
• Grinding head: five planet arms for uniform contact
• Abrasives: high-quality media to reduce grinding time
• Bearings: sealed planet arm bearings; factory-sealed bearings for easy head change
• Planet arm preload accuracy: within 0.000079 in (0.002 mm)
• Modular components for fast setup
• CE certified
• Rental only for models VM1350, VM1500, VM1600
