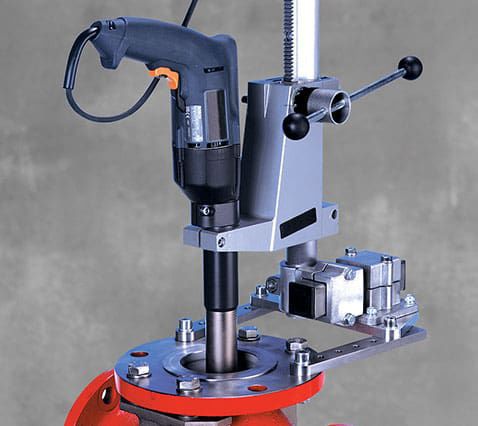

Valve grinding machine VM2000

for conical valve seatverticalautomatic

The CLIMAX VM2000 Series Valve Grinding & Lapping Machine delivers reliable valve repair performance in rugged yet compact configurations designed for fast, precise grinding and lapping of globe valves with flat or conical seats. Engineered for field and shop use, each model supports a wide range of valve diameters and allows operators to easily and quickly change disks while adjusting grinding pressure during operation—maximizing efficiency, accuracy, and repeatable results in demanding maintenance environments. QUICK AND EASY SETUP Quickly change over between electric and pneumatic by simply loosening a single clamping bolt. Media discs with adhesive specifically formulated to provide a firm hold while in use but are easy to remove after use. Three jaw chuck and adapters for mounting on the ID or OD of the valve body or studs. RIGID Thick planet wheels and webbed design provides increased rigidity, allowing consistent flatness regardless of grinding pressure. VERSATILE Five valve grinding disks to ensure constant contact with the seat, which allows you to grind perfectly flat. Planet arm bearings are sealed, preloaded and preset to be within 0.000079 inches (0.002mm) of each other on a flat plane. Complete set of diameters and grit of abrasives (800 – 1200 pieces) are included with all valve machines. Submerging depths up to 31-inches (800 mm) on the standard machines. Seat diameter sizes 0.4 to 24 inches (10 – 600 mm). SAFETY CE certified and available worldwide! All valve grinding and lapping machines are available for sale worldwide, including in the European Union and other locations where CE certification is required.
