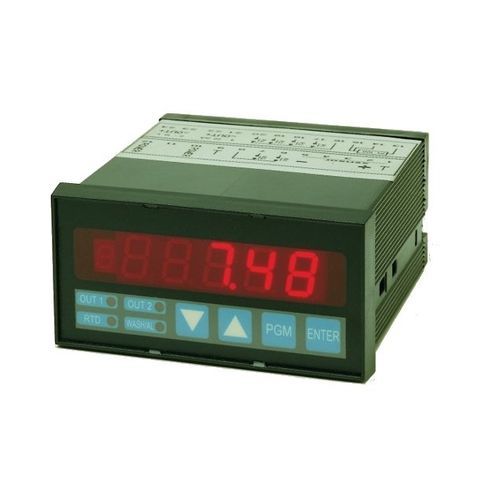

Microprocessor based instruments, fully programmable, suitable for panel mounting (IP54 protection degree) and outdoor installation (IP65 housing). Instrument configuration is easily performed via display and keyboard and calibration is automatic.
Measure and temperature are indicated on a 5 digit red LED display.
Mod.uPLT can be directly connected to the sensor of pH and ORP with differential type electrodes and to the pertinent temperature sensing element. The measure is compensated for temperature variations, according to dedicated algorithms specific for each parameter and displayed in engineering units.
The instrument provides 2 digital outputs that can be configured as NC or NO via software and can be programmed as low alarm, high alarm, alarm with hysteresis or windows alarm.
The 2 digital outputs are from relays.
Two digital inputs are available, one for digital hold of the measure, and one for the input of an external alarm (e.g. level switch, flow switch etc.)
Measuring ranges are:
pH: -1.00-+15.00 pH;
ORP: - 2000-+2000 mV;
Power supply: 24 Vdc, 24 Vac, 115 Vac, 230 Vac, ± 10%, 50/60 Hz, max.consumption: 3.3 VA
