Concrete mixer truck

diesel enginelow CO2 emissions

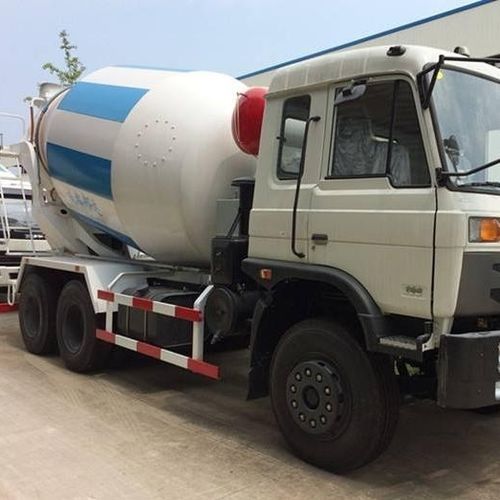

12 Cbm Dongfeng 210 HP Euro 3 Concrete Mixer Truck Cement mixer also known as concrete mixer, mainly used for concrete mixing station cement transport work. The working principle is that the power of the automobile chassis is taken out through the power take-off and the hydraulic pump of the hydraulic system is driven, the mechanical energy is transformed into the hydraulic energy and can be transmitted to the hydraulic motor, the motor drives the reducer, the agitator is driven by the reducer, Stir. Hot Sale of 12 cbm Dongfeng 210 HP Euro 3 Concrete Mixer Cement Mixer Truck Three main part of the concrete mixer truck: 1.German Rexroth Hydraulic pump, Motor, ZF reducer; 2.America Eton Hydraulic pump, Motor ; 3. Italy Bonfiglioli Reducer; 4. Italy PMP Hydraulic pump, Motor and reducer. 5.China brand pump, motor and reducer Concrete mixing tank: The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
