Platform semi-trailer BPW
2-axletowedworkpiece

platform semi-trailer
platform semi-trailer
platform semi-trailer
platform semi-trailer
Add to favorites
Compare this product


Characteristics

Type
platform
Number of axles
2-axle
Mounting
towed
Products carried
workpiece
Other characteristics
with hydraulic suspensions
Payload

6,000 kg (13,227.74 lb)

Description

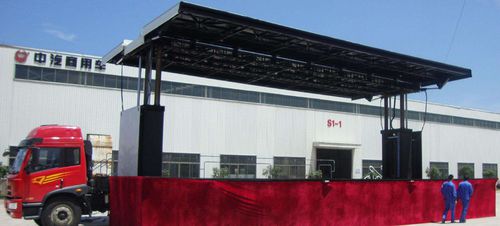

2 Axle Foldable BPW Suspension Mobile Transformable Stage Semi Trailer for Commercial Campaign 1. Right/Left side P4/P6/P8/P10 LED outdoor full colour display screen 2. Left/Right side with advertising rollers 3. Rear LED monochrome screen,size 1280mm *1440 mm 4. Internal and external electrical distribution box 5. Circulating ventilation and cooling systems 6. Omar Silent diesel generator set 7. One set industrial computer with control system,sound system 8. Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc. DIMENSIONS Tare Weight - 19900kg Payload - 6000kg Overall Dimensions - 13000mm * 2500mm * 3980mm Wheelbase - 7900mm + 1300mm Wheel Thread - 1830mm/1830mm SPECIFICATION Chassis - Heavy duty and extra durability designed I beam; Optional for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. Axle 2 axles BPW 8 Ton Hydraulic System - One set of HYVA cylinder Suspension - Heavy duty mechanical suspension Leaf Spring - 10-piece leaf spring. King Pin - JOST brand 2” Bolt-in King Pin Landing Gear - JOST brand Two-speed, manual operating, heavy duty landing gear Wheel Rim - 8.25-22.5 wheel rim, 8 pieces Tyre - 11R22.5 tubeless tire with one spare tire, 8 pieces Spare Tire - One set of spare tire including a carrier Braking System - WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks Painting - Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Accessories - One standard tool box
