3 Axle 25CBM 60Ton U Shape Tipping Dump Tipper Semi Trailer
3 Axle 25CBM 60Ton U Shape Tipping Dump Tipper Semi Trailer
Dump Truck mainly transport sand, stone, soil, garbage, building materials, coal, ore, food and agricultural products.
The capacity of the 10 Wheel Mining Dump Truck from 40metric ton to 70metric ton
Suspension:German design mechanical suspension
3 Axle 25CBM 60Ton U Shape Tipping Dump Tipper Semi Trailer
DIMENSIONS
Tare Weight 12500kgs
Payload 45000kgs
Overall Length 8800mm
Overall Width 2465mm
Dump body size 7300mmx2300mmx1500mm

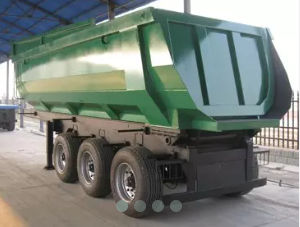

Photo for reference, final produce can be made according to exact requirements
DUMPER BODY
Volume 25 m3
Side Wall 6mm thickness
Front Wall and floor 8mm thickness
SPECIFICATION
Chassis
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.
Axle
3 axles
BPW Brand 13ton, FUWA brand is optional.

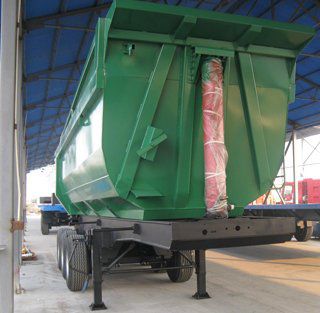

Hydraulic System One set of HYVA cylinder
Suspension German design mechanical suspension
Leaf Spring 8-piece leaf spring. 11x100
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 8.25R22.5 wheel rim, 13 pieces including one spare
Tyre 11R22.5 tubeless tire , 13 pieces including one spare
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
