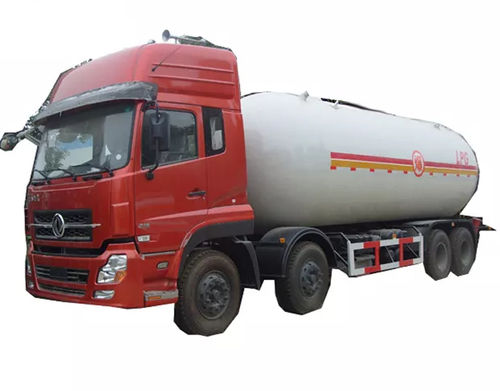

Transport tanker 6X4 Dongfeng 24CBM (12MT)
for LPG2-axlediesel engine

Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine
Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine
Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine - image - 2
Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine - image - 3
Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine - image - 4
Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine - image - 5
Transport tanker - 6X4 Dongfeng 24CBM (12MT) - CLW GROUP - for LPG / 2-axle / diesel engine - image - 6
Add to favorites
Compare this product

Characteristics

Function
transport, for LPG
Number of axles
2-axle
Engine type
diesel engine
Power

210 ch
(210 hp)

Description

Dongfeng 6X4 12MT Fully Refrigerated LPG Road Tank Truck It's widely used for Liquefied Petroleum Gas (Propane)delivery. The material is high quality Carbon Steel Q345R, 10mm thick. 6X4 Dongfeng 24CBM (12MT) LPG Bobtail truck Condition New condition / RHD Cab 3 Passenger Allowedb Chassis Brand Dongfeng Curb weight(kg) 11040 G.V.W.(kg) 23040 Wheelbase(mm) 4350+1300 Dimensions(mm) 9600x2485x2930 Overhang (front/rear) (mm) 1245/2705 Approach/Departure angle(°) 28/11 Max. driving speed(km/h) 0 Tank Parameter: Tank material Carbon Steel Q345R Loading capacity (cbm) 24cbm(12MT) Tank shape Double ellipse Tank Dimension (mm) 2050 x 10 x 7644 Thickness of Shell (mm) 10 Thickness of End plate(mm) 10 Filling Medium Liquefied Petroleum Gas ( Propane) Corrosion Allowance(mm) 1 Filling ratio 0.42 Design pressure(Mpa) 1.61Mpa Medium Density 420kg/cbm Specification 10.00R20 ear box 8 Forwards & 2 reverses
