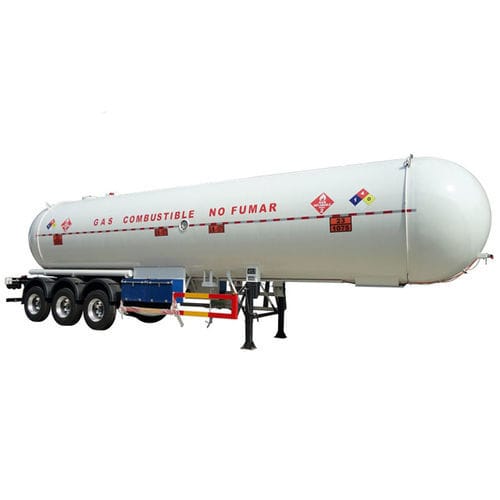

Semi-tanker semi-trailer for liquified gasfor LPG3-axle
Add to favorites
Compare this product
Characteristics
- Type
- semi-tanker
- Products carried
- for LPG, for liquified gas
- Number of axles
- 3-axle
- Mounting
- towed
- Brake system
- with hydraulic braking
- Payload
24,570 kg
(54,167.58 lb)- Empty weight
15,430 kg
(34,017.3 lb)
Description
LPG Tank Trailer Specification:
Volume of Tank 59600Liters
Overall Dimensions(L*W*H)(mm) 13000*2500*3990
Tank Dimensions (Inner Diameter*thickness*Length) 2478*11*12791
Estimated Tare Weight (kg) 15430
Payload(kg) 24570
Total Weight(kg) 40000
Wheelbase(mm) 7230+1310+1310
Shell of Tanker:
Products Liquefied Petroleum Gas (propane)
Fluid Property Flammable
Design Temperature(℃) -19℃~50℃
Design Pressure(MPa) 1.61
Corrosion Allowance(mm) 1.00
Weld Joint Factor 1
Major Materials Tanker body:Q345R,11mm,
End plate：Q345R,11mm,double ellipse
Main beam:16Mn
uality Control Process:
Heat Treatment Overall treatment in a furnace,600℃ to 640 ℃
Riagraphic Test 100% X-ray Detection
Test Pressure(MPa) 1.61
Hydraulic Test(MPa) 2.21
Magnaflux Inspection For Pipe & flange connection
