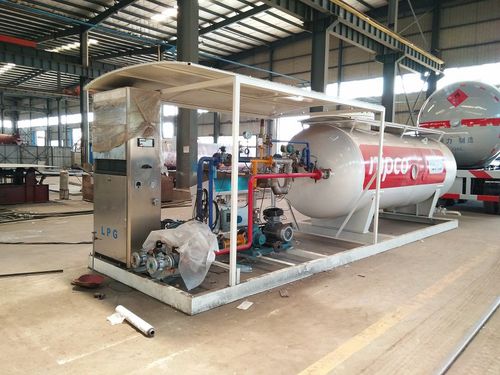

Automated filling station Q345Rcontainerfor gas bottlesindustrial
Add to favorites
Compare this product
Characteristics
- Operational mode
- automated
- Container type
- container, for gas bottles
- Domain
- industrial, for the chemical industry
- Number of heads
- with 2 heads
- Volume
10 m³
(353.1 ft³)- Machine length
2,050 mm
(81 in)- Machine height
500 mm
(20 in)- Machine weight
7,950 kg
(17,526.75 lb)
Description
10 CBM LPG TANK DIMENSIONS
Volume of Tank 10 CBM
Filling Weight 5000kg
Tank Weight 2950 kg
Thickness of Shell (mm) 10 mm
Thickness of Endplate (mm) 10 mm
Tank Diameter (mm) 1600 mm
Tank Dimensions (mm) (length x width x height) 5260 x1620x2210 mm
External Dimensions (mm) (length x width x height) As designed to Load in a 40’HQ
Container
Material of Tank Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.77 MPa
Corrosion Allowance 1 mm
Medium Density 420-590 kg/ cbm
Discharge Pipe DN50
Inflow Pipe DN50
Outlet DN50
Gas phase balance pipes DN50
Manhole DN450
Drain Hole DN50
