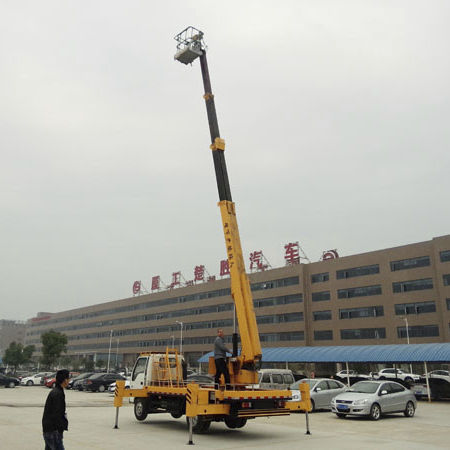

Truck-mounted aerial work platform

hydraulicexteriorfor industrial applications

16 Meters Telescopic Type Aerial Platform Truck Aerial platform operation truck have two main products: Telescopic type and folding type. The folding type is the main basic products. The height can be from 10 meters to 28 meters. The Telescopic boom type aerial platform truck are hottest used in power line repairing and other high altitude operation. That is also why the Aerial platform truck called high atitude operation trucks. Model - CLW50160GKC Brand - CLW Chassis - ISUZU 700P Dimensions (L×W×H) - 7240 × 2200 × 3350 mm Wheelbase - 3360 mm Overhang (Front/Rear) - 1015 / 1975 mm Wheel track (Front/Rear) - 1504 / 1425 mm Approach/Departure angle - 24° / 13° Curb weight - 7000 kg Max speed - 90 km/h Engine model - ISUZU 4HK1‑TCG40 Engine type - 6‑cylinder, turbocharged, Euro 4 Transmission - MSB, 5 forward + 1 reverse Suspension - Mechanical Steering - Hydraulic power steering Brake system - Dual circuit compressed air Electric system - 12/24 VDC Cab - Dongfeng standard cabin Tires - 7.00‑16, 6 pcs + 1 spare Max working radius - 9.4 m Bucket rotation - 360° full turn Outrigger span - 4000 × 4000 mm Hydraulic system flow - 30 L/min Hydraulic system pressure - 20 MPa Bucket load capacity - 200 kg Bucket dimensions - 1000 × 650 × 1200 mm Operating temperature - −20 ~ +60 °C Control system - Remote + manual emergency
