Construction truck-mounted concrete pump

dieselpiston

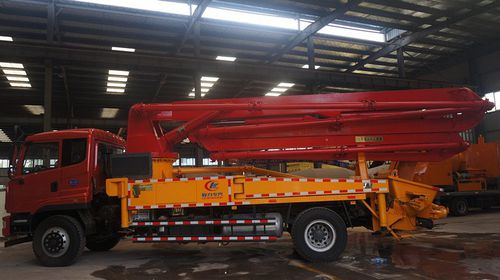

clw construction small size 28m mounted concrete pump cement pump truck Concrete pump truck is a machine that uses pressure to transport concrete along pipeline continuously. It consists of pump body and conveying pipe. According to the structure form, it is divided into piston type, extrusion type and water pressure diaphragm type. The pump body is mounted on the chassis of the vehicle, and then equipped with retractable or bent cloth rods to form a pump truck. Concrete pump truck is modified on the truck chassis. It is mounted on the chassis with motion and power transmission, pumping and mixing device, cloth device and other auxiliary devices. The power of the concrete pump truck engine power is transmitted to the hydraulic pump or rear axle through the power transfer case, push the piston to drive the hydraulic pump concrete pump. Then, the concrete is conveyed to a certain height and distance by using the distributing rod and the conveying pipe on the pump truck. Drive model - 4×2 Left Hand Drive Dimensions (L×W×H) - 9465 × 2350 × 3250 mm Wheelbase - 4700 mm Overhang (front/rear) - 1285 / 3050 mm Wheel track (front/rear) - 1810 / 1800 mm Approach/Departure angle - 20° / 10.5° Curb weight - 15 580 kg GVW - 15 775 kg Max speed - 80 km/h Engine model - YC4E160-33 Engine type - 4-stroke, 6-cylinder inline, turbocharged, water-cooled Displacement - 4257 cc Emission standard - Euro III Gearbox - DC6J65TA, 6 forward + 1 reverse Clutch - Reinforced diaphragm clutch Steering - Hydraulic power steering Tires - 9.00R20, 7 pcs incl. spare Upper material - Q235 carbon steel Thickness - 16 mm
