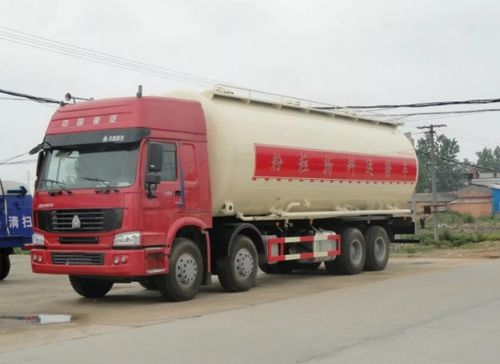

Tanker for powder and granulates tanker

transport3-axlediesel engine

8x4 HOWO Bulk powder /cement tank truck/tanker Air compressor operate cement, lime powder, ore powder, particle size, such as particles of not more than 0.1mm powder bulk materials dry bulk transport The use of power-driven air compressor, compressed air through the pipeline into the lower sealed gas tank chamber, the gas chamber liquid bed powder suspended in fluid state, when the tank pressure reaches the rated value, open the discharge Valves, fluidized materials flow through the pipeline for transport. Dimensions (L×W×H) - 11 980 × 2 500 × 3 950 mm Wheelbase - 1 800 + 4 700 + 1 350 mm Overhang (front/rear) - 1 500 / 1 560 mm Wheel track (front/rear) - 2 022 / 1 830 mm Approach/Departure angle - 19° / 30° GVW - 15 815 kg Curb weight - 25 000 kg Max speed - 85 km/h Engine model - WD615 Engine type - 4‑stroke, 6‑cylinder inline, water‑cooled, turbocharged, inter‑cooled Horsepower - 371 HP Emission standard - Euro II Gearbox - 10 forward + 2 reverse Clutch - Reinforced diaphragm clutch Steering - Hydraulic power steering Tires - 12.00R20 radial, 12 pcs + 1 spare Brakes - Dual circuit compressed air brake; spring energy parking brake; exhaust valve auxiliary brake Tank type - Cylinder, carbon steel / stainless steel / aluminum alloy Tank system - Airbag‑type fluidized bed Working pressure - 0.2 MPa Discharge rate - 1.1–1.3 t/min Residual rate - ≤ 3% Discharge height - > 25 m Compressor options - 7.3 m³, 8 m³, 10 m³ (direct drive or belt drive)
