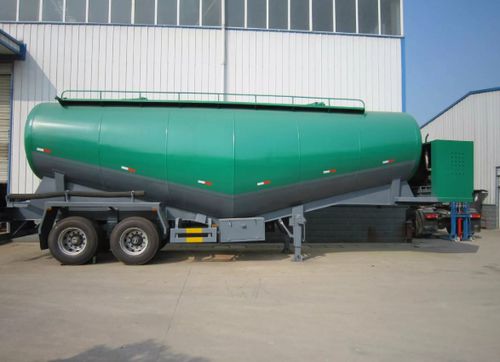

Semi-tanker semi-trailer

powdercementfor bulk materials

Heavy Load Powder Material Transport Tri-Axle Bulk Cement Tank Semi Trailer/truck Trailer(volume Optional) cement, lime powder, ore powder, particle size, such as particles of not more than 0.1mm powder bulk materials dry bulk transport The use of power-driven air compressor, compressed air through the pipeline into the lower sealed gas tank chamber, the gas chamber liquid bed powder suspended in fluid state, when the tank pressure reaches the rated value, open the discharge Valves, fluidized materials flow through the pipeline for transport. Dimensions (L×W×H) - 12 500 × 2 500 × 3 950 mm Wheelbase - 7 300 + 1 310 + 1 310 mm GVW - 40 000 kg Curb weight - 8 500 kg Axles - 3 × 13 t Tires - 12.00R20, 12 pcs + 1 spare Suspension - Mechanical spring Brakes - Dual circuit compressed air brake, ABS Landing gear - 28 t King pin - #50 (2 inch) / #90 (3.5 inch) Tank type - Cylinder, carbon steel / stainless steel / aluminum alloy Tank volume - 35–60 m³ (optional) Tank system - Airbag‑type fluidized bed Working pressure - 0.2 MPa Discharge rate - 1.1–1.3 t/min Residual rate - ≤ 3% Discharge height - > 25 m Compressor options - 7.3 m³, 8 m³, 10 m³ (direct drive or belt drive
