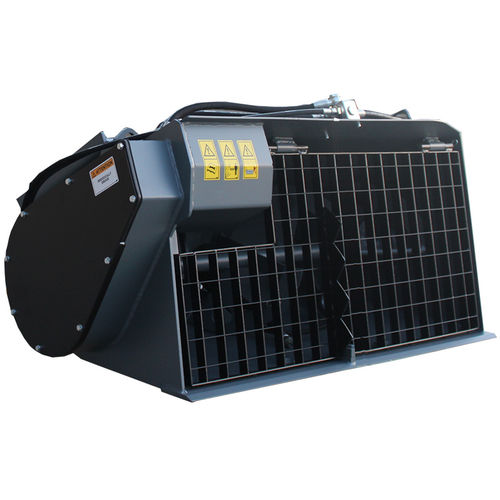

Concrete mixing bucket MIX 250, MIX 300

for loadersfor telehandlersfor tractors

MIX | MIXING BUCKET The mixing bucket MIX series has been designed to prepare concrete quickly and in any condition. Produced in 10 models, it can be applied to all operating machines such as skid steer loaders, excavators, backhoe loaders, wheel loaders, telescopic handlers, tractors. Equipped as standard with an electrically valve for the hydraulic controlling the opening of the drain nozzle, a galvanized protection grid with a bolted saw (hydraulic or with gas springs as optional), hydraulic pipes and drainpipe. Sharp part, shoulders, bottom and cochlea are made of wear-resistant material. OPTIONALS Bolted interchangeable bottom Opening of grid with gas springs Hydraulic opening grid Pre-arrangement for excavator Pre-arrangement for tractor Bolted and interchangeable upper bracket Hydraulic quick couplings kit Connector 8-14 Poles 12 V Concrete Mixing Bucket models MIX 250 and MIX 300 are particularly suitable for any tipe of urbanization and drainage work, street flooring. They can mix concrete in any condition and short time, reducing the operative costs at best. MIX 250 MIX 300 Useful width(mm): 1200 1200 Overall dimensions(mm): 1380 1380 Capacity(l): 250 300 Max Capacity (l): 275 330 Void Weight(kg): 270 300 Required Flow(l/min): 20/30 40/60 Pressure(bar): 150 170
