Overview

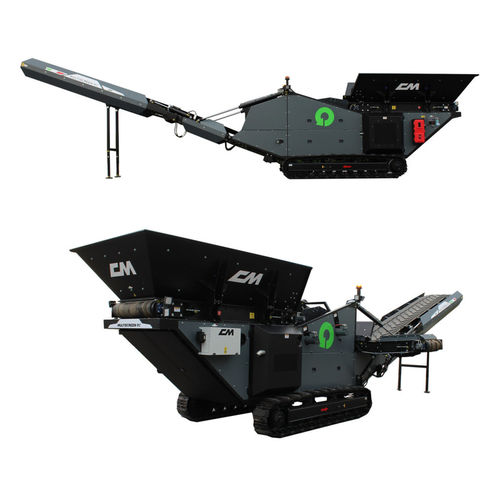

MULTISCREEN RC is a compact radio-controlled disc screener for on-site screening and separation of mixed and difficult materials. It features a configurable 10-shaft disc deck, a 3 m³ loading hopper and optimised discharge conveyors to enable continuous, precise screening with reduced handling and downtime.

Advantages

• Processes gravel, soil (including wet and mixed), humus, compost, coal, excavation materials, recycled aggregates and demolition waste.
• On-site processing to minimise transport and intermediate handling.
• Effective separation of fines and coarse oversize fractions.
• Remote-control operation for fast and safe adjustments.
• Tracked undercarriage for easy movement on site; rubber pads available on request.
• Ordered discharge of separated fractions via dedicated conveyors.
• Designed for mixed, wet and irregular materials.
• Automatic centralized greasing to reduce manual maintenance.

Applications

• Recycling and material recovery
• Quarries and mining operations
• Road construction and maintenance
• Tunnel excavation sites
• Construction and demolition projects
• Landscape and agricultural site maintenance
• Underground utilities and civil works

Product insights

• Loading hopper: 3 m³ hopper with wide opening for easier excavator loading and continuous feed.
• Disc screen: 10-shaft disc deck providing a large screening surface; shafts are interchangeable to match site requirements.
• Configurable screening size: interchangeable shafts with spacing options of 16, 25, 40 or 60 mm for precise fractioning.
• Engine: Cummins Stage V, 74 HP (no AdBlue) for reliable continuous operation and optimised fuel consumption.
• Tracks: steel tracks, 300 mm shoe width, 2,950 mm track gauge; rubber track pads available on request.
• Full remote control: remote adjusts inlet conveyor speed, screening deck speed and inclination, discharge conveyors opening/closing and speed; display for machine status and fuel level.
• Discharge conveyors: fine conveyor 1,000 mm belt width with discharge up to 3,750 mm; oversize conveyor 800 mm belt width with discharge up to 1,800 mm.
• Automatic lubrication: centralised automatic greasing for screening shafts to extend continuous operation and reduce maintenance downtime.

Technical specifications

• Commercial name: MULTISCREEN RC
• Loading hopper volume: 3 m³
• Hopper dimensions: 3,500 mm length × 2,300 mm width
• Disc deck: 10-shaft disc screen
• Screening spacing options: 16 mm, 25 mm, 40 mm, 60 mm (interchangeable shafts)
• Engine: Cummins Stage V, 74 HP (no AdBlue)
• Fuel tank capacity: 95 L
• Tracks: steel tracks, shoe width 300 mm, track gauge 2,950 mm (rubber pads available on request)
• Fine material conveyor: belt width 1,000 mm; discharge height up to 3,750 mm; chevron belt
• Oversize conveyor: belt width 800 mm; discharge height up to 1,800 mm
• Remote control functions: inlet conveyor speed, screening deck speed and inclination, opening/closing and speed adjustment of discharge conveyors; display for real-time monitoring and fuel level
• Automatic lubrication / centralized greasing system for screening shafts
• Designed for on-site use with mixed, wet and irregular materials; suitable for recycling, demolition, earthmoving and aggregate processing
