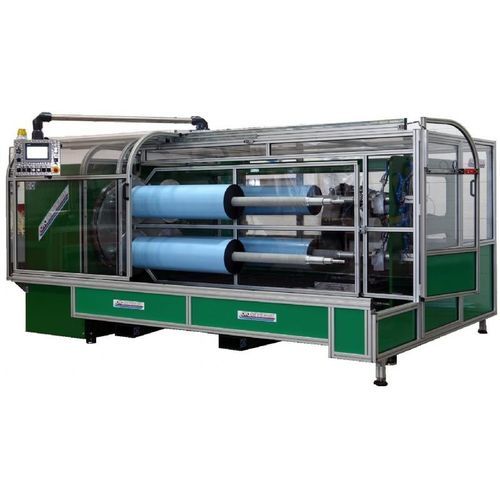

Automatic slitting machine E4-400M

automatic slitting machine
automatic slitting machine
automatic slitting machine
automatic slitting machine
Add to favorites
Compare this product


Characteristics

Options
automatic

Description

Fully automatic nonstop working cycle, including the over turning of the turret with manual loading and unloading of material. Max. working width:1700mm. (67”). Max. outside Ø of log: 400mm (15,8”) on Ø 76mm (3”) mandrels with Ø700mm (27,6”) blade. Max. weight of material loadable on unsupported mandrel: 80 kg (176.5 lbs); with supported mandrel , 200 kg (441lbs). N. 4 Interchangeable mandrels from Ø 51mm (2”) to Ø 76mm (3”). Indexing tolerance: +/- 0,1mm (0,003”). Cutting width: from 2 mm (0,008”). with decimal increasing. Cutting system: single rotating blade on two over imposed mandrels, with other two over imposed mandrels available for loading/unloading operation. Turret rotation combined with automatic expansion of the mandrels provides continuous operation and allows faster loading and unloading of material. N. 4 support disk for material holding on the chuck side. Driven blade unit. Automatic blade pivoting angle. Machine controlled by “PLC SIEMENS” and interface operator “TP700” colour touch screen technology This model can be customized to meet customer's needs thanks to a wide range of options available.

VIDEO
