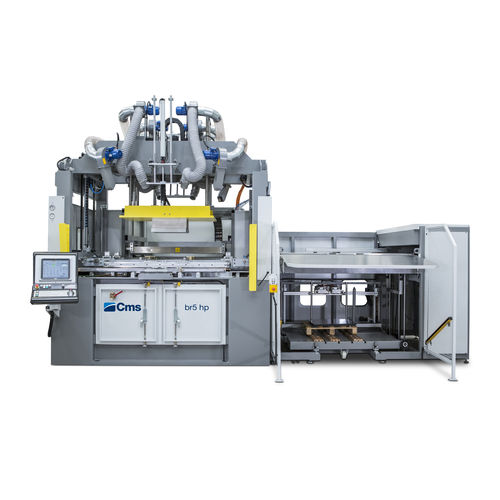

Plastic sheet thermoformer br5 hp
automaticvacuum

plastic sheet thermoformer
plastic sheet thermoformer
Add to favorites
Compare this product

Characteristics

Type
for plastic sheets
Operational mode
automatic
Other characteristics
vacuum
Forming area x

Max.: 3,500 mm (138 in)

Min.: 1,500 mm (59 in)

Forming area y

Max.: 2,500 mm (98 in)

Min.: 1,000 mm (39 in)

Description

Thermoforming with vacuum and pressure The BR / HP series - manual or automatic sheet loading thermoforming machines – is characterized by an extremely innovative parts management system. Loading of the sheet to be formed, the forming operation, and the piece unloading are carried out automatically. Quick mould change , complete diagnostics, networking and opportunity to work with vacuum and pressure even on the upper mould , all make the BR5 / HP series an absolute reference point entire thermoforming industry. Rapid change of machine settings , with the integrated software systems Clamp frame dimensions are stored to further speed up the adjustment of the upper frame All movements are motorised. The mould-plate has a servo movement managed via PC with speed and positioning information that is stored for future fast setups. The patented mechanics work using two electronically coupled servomotors (gantry), ensuring a quick and precise positioning of the mould and a high level of pressure Lower and upper mould base have gantry systems with coupled axes and ball screws Dimensions: from 1.500 mm x 1.000 mm to over 3.500 mm x 2.500 mm
