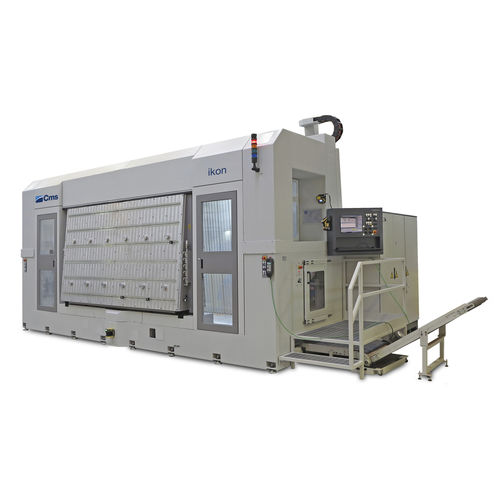

5-axis CNC machining center ikon
universalfor aluminumfor composites

5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
universal
Machined material
for aluminum, for composites
Other characteristics
milling, high-precision, drilling
X travel

3,600 mm (142 in)

Y travel

2,000 mm (79 in)

Z travel

900 mm (35 in)

Rotational speed

24,000 rpm (150,796 rad.min-1)

Power

12 kW, 15 kW, 20 kW (16.32 hp)

Description

Ikon is a 5-axis geometry machining centre with two vertical tables for the processing of aluminium and composites materials. Equipped with one or two horizontal operating units, it ensures high productivity. • Excellent floorspace / working area ratio • Easy integration in highly automated contexts • Ergonomic design for loading /unloading operations • No dead times due to loading /unloading operations • Increased productivity thanks to the double independent operating units • Full enclosure, clean environment, safety for operators • Easy removal of scraps and dust • Complete inner view by the operator ONE OR TWO INDEPENDENT WORKING UNIT FOR HIGHEST FLEXIBILITY AND PRODUCTIVITY Up to five operating modes: 1. Only one operating unit used - the unused one stays idle and parked 2. One operating unit is used at a time - the deadtime for tool changing is masked 3. Two coupled operating units - Simultaneous machining of two identical workpieces 4. Two coupled and mirrored operating units - Simultaneous machining of two symmetrical workpieces 5. Two fully independent operating units - Two machines in one
