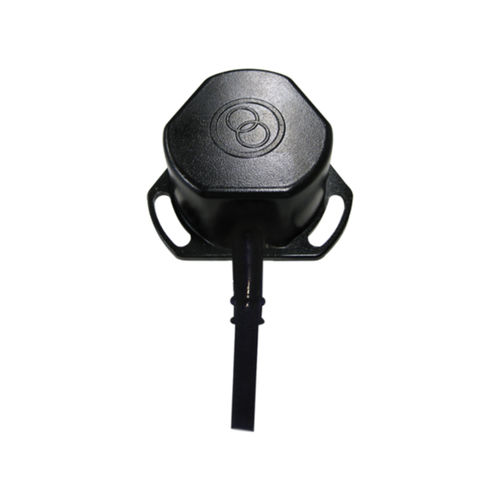

XY tilt sensor 1033324
digitalIP67for angle measurement

XY tilt sensor - 1033324 - C.O.B.O. SpA - digital / IP67 / for angle measurement
XY tilt sensor - 1033324 - C.O.B.O. SpA - digital / IP67 / for angle measurement
XY tilt sensor - 1033324 - C.O.B.O. SpA - digital / IP67 / for angle measurement - image - 2
Add to favorites
Compare this product

Characteristics

Number of axes
XY
Output
digital
Other characteristics
for angle measurement, IP67
Inclination

Max.: 10 °

Min.: -10 °

Resolution

3 °

Description

Angle sensor 1033324 with XY work axis, digital on/off output signal, and single measurement sensor features a measurement range between -10 and 10°. The sensor operates at a supply voltage between 9 and 30V. Operating temperature range between -40 and 70°C. Protection rating: IP67. Approved under It is EN 61000-4-2 + A1, and EN 61000-6-2. COMMERCIAL NAME - AMU-ON/OFF P WORK AXIS - XY ACCURACY - 0,3° TECHNICAL NAME - AMU0 MEASUREMENT RANGE - -10 ÷ 10 NR OF CONTACTS - 4 PINS 5 PINS MEASUREMENT SENSOR - SINGLE OUTPUT SIGNAL - DIGITAL ON/OFF SENSITIVITY - 0.001 DEG/C° CONNECTORS - MIL-C-26482 M12X1 SUPPLY VOLTAGE - 9 ÷ 30V OPERATING TEMPERATURE - -40 ÷ 70°C HOUSING MATERIAL - ALUMINIUM HOUSING COLOR - BLACK HOMOLOGATIONS - EN 61000-4-2 + A1 EN 61000-6-2
