Differential pressure indicator 1017081analogring balanceIP66
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Display
- analog
- Technology
- ring balance
- Protection level
- IP66
- Applications
- for oil
- Dial diameter
52 mm
(2 in)- Process temperature
Max.: 75 °C
(167 °F)Min.: -30 °C
(-22 °F)
Description

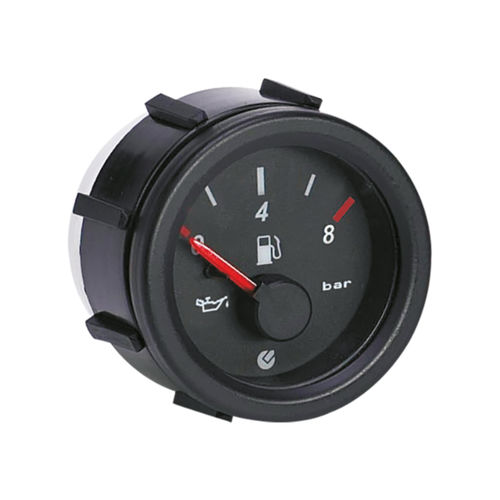

Oil pressure gauge 1017081, diameter: 52 mm, with analogue indicator is fixed by a ring nut. Supply voltage: 12V. The gauge operating temperature range is between -30 and 75°C. Protection rating: IP66.
TYPE - D.52
SUPPLY VOLTAGE - 12V
OHM RESISTANCE RANGE - 0 ÷ 335Ohm
OPERATING TEMPERATURE - -30 ÷ 75°C
ASSEMBLY ON DASHBOARD - FRONT
FIXING - RING
ANALOGUE/DIGITAL INDICATORS - ANALOGUE
NR OF CONTACTS - 5 PINS
FUNCTIONS - OIL PRESSURE GAUGE
FRAME - CO-MOULDED PLASTIC
CONNECTORS - FASTON
HOUSING MATERIAL - PLASTIC
HOUSING COLOR - BLACK
