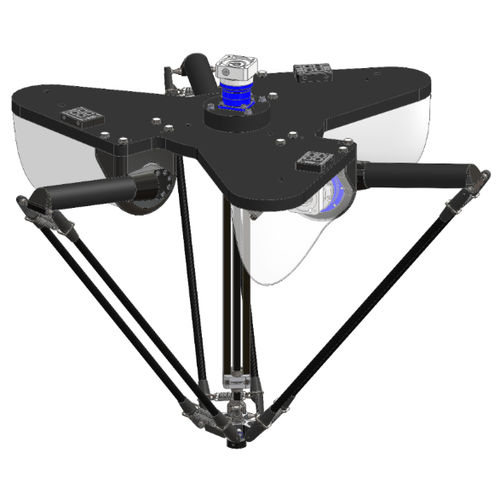

Delta robot D4-800-S020-R100
4-axispick-and-placefor the food industry

delta robot
delta robot
Add to favorites
Compare this product


Characteristics

Type
delta
Number of axes
4-axis
Function
pick-and-place
Application domain
for the food industry, for the electronics industry, for the pharmaceutical industry, for the cosmetics industry
Payload

3 kg
(6.614 lb)

Reach

800 mm
(31.5 in)

Repeatability

0.1 mm
(0.0039 in)

Description

Performance Working area: 800 x 350 mm Pick & place: up to 200 p/min Options LW Rotation R100 7Nm R200 19Nm RH090 7Nm washdown RH100 7Nm washdown T100 tilt axis Accessory Calibration tool Vacuum head Vacuum pipe secondary arms 2-way Rotary transit 8 Bar/vacuum 0.7 Vacuum hoses Vacuum pipe clamps Cable routing
