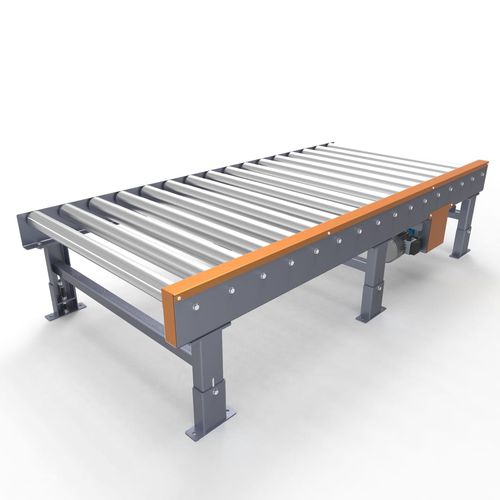

Stainless steel conveyor chain R Heavy series

rollerweldedroller

R12 Heavy Series • Length: To be determined based on installation requirements • Useful width: To be determined based on product dimensions • Maximum load capacity: To be determined based on the width of the conveyor and the pitch between rollers. • Pinion: Metallic • Ø Shaft: 15, 17, 20 and 25 mm • Finish: Painted / Zinc Plated / Sandblasted • Speed: 8 to 20 m / min • Motorization: central or head. • Height adjustable leveling feet ± 50mm Your application main are the heavy palletizing lines. The transport of pallets must be carried out in such a way that they advance in the longitudinal direction of the sleepers. For optimal management of transmission lines it is recommended to divide them into sections of 1.5m or multiples. The traction of the rollers is done by chain loops. Its constructive shape allows easy integration into existing or new lines. R52 Heavy Series • Length: To be determined based on installation requirements. • Useful width: To be determined based on product dimensions • Maximum load capacity: To be determined based on the width of the conveyor and the pitch between rollers. • Pinion: Metallic • Ø Shaft: 15, 17, 20 and 25 mm • Finish: Painted / Zinc Plated / Sandblasted • Speed: 8 to 20 m / min • Motorization: central. • Height adjustable leveling feet ± 50mm • Noise level: medium. Suitable for the transport of heavy products. Using this machine It is recommended when the base of the product to be transported is small, requiring a reduced pitch between rollers.
