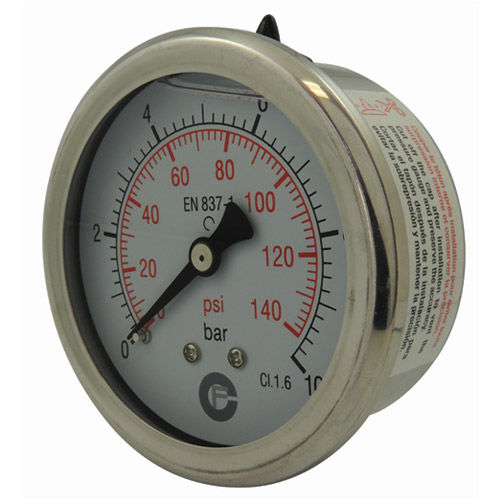

Relative pressure gauge 248 series dialbrassstainless steel
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Material
- stainless steel, brass
- Technology
- Bourdon tube
- Other characteristics
- precision
- Pressure
Min.: -1 bar
(-14.5 psi)Max.: 1,000 bar
(14,503.77 psi)- Process temperature
Min.: 40 °C
(104 °F)Max.: 65 °C
(149 °F)
Description
Conditions of use
• Suitable for applications subject to vibrations or humid environments (condensation).
• Overpressures : The maximum pressure under static load must not exceed 75% of the maximum value of the measurement range, or 65% under dynamic load. This will increase the life of the device.
Technical features
• Brass mechanism with copper Bourdon tube.
• Product designed, manufactured and controlled according to EN 837-1 standard (Bourdon tube pressure gauges).
• 100% inspection with 5 measuring points.
• Accuracy class 1.6 (±1.6% of the measuring range).
• Silicon filled stainless steel 304 cases.
• Axial brass connection with BSPP male thread (ISO 228-1).
• Dial with double graduation bar/psi.
Individual box for distribution.
