Air purification system CRVE
wastewater

air purification system
air purification system
Add to favorites
Compare this product


Characteristics

Options
for air, wastewater

Description

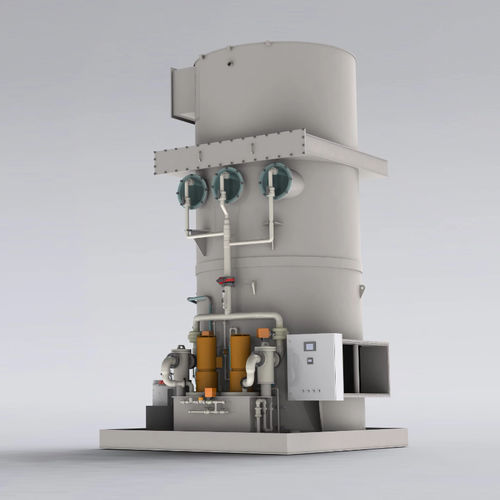

The Colasit CRVE counter-flow exhaust air scrubber with a vertical design cleans acidic and alkaline contamination from highly-contaminated process air up to a volume of 60000 m³/h. Special versions with higher air performance are available on request. A scrubbing fluid is injected into the exhaust air that flows in horizontally and this scrubs the water-soluble contamination out by adding alkalis or acids. A collection tank collects the harmful substances. Utilization Cleaning highly-contaminated process air with acidic or alkaline contamination in The food industry The pharmaceutical, chemical or biochemical industry Semiconductor, solar and surface technology Wastewater treatment plants and waste recycling facilities Composting Drying processes Characteristics Volume flow: min. 700 m3/h to max. 6000 m3/h Efficiency: up to max. 99.9 % Construction Made of non-corrosive plastics: PP, PPs, PE, PVC, PVDF, GRP. Packaging materials ensure sufficient boundary surface area between the gas and fluid phase. A mist eliminator is used to separate liquid drops that have been carried along. Ex Protection Version available in ATEX zones 1 + 2 Accessory pH measurement, conductometry measurement Chemical dosing, dosing tank Automatic sludge removal from the washing fluid Design for outdoor installation, screw-in heater Inclined bottom Redundant scrubber pump Aerosol separator Alternative packaging material Splash guard Process control Containment basin Design Individual configuration according to your specifications

Catalogs

No catalogs are available for this product.
