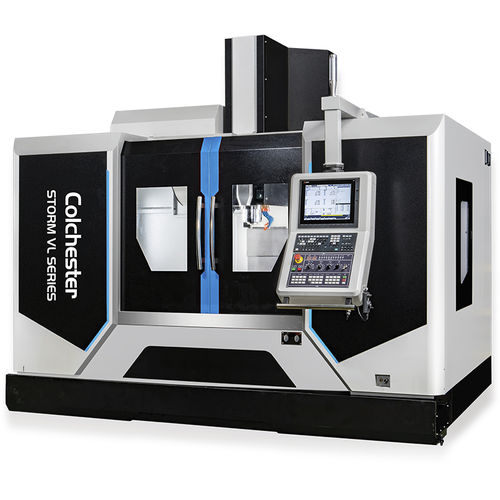

3-axis CNC machining center VL seriesverticalBT 40cutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Associated functions
- cutting
- Other characteristics
- high-speed, high-rigidity
- X travel
Max.: 2,000 mm
(78.74 in)Min.: 550 mm
(21.65 in)- Y travel
Max.: 900 mm
(35.43 in)Min.: 410 mm
(16.14 in)- Z travel
Max.: 850 mm
(33.46 in)Min.: 460 mm
(18.11 in)- Rotational speed
Max.: 15,000 rpm
(94,248 rad.min-1)Min.: 10,000 rpm
(62,832 rad.min-1)- Table load capacity
Max.: 2,000 kg
(4,409 lb)Min.: 350 kg
(772 lb)- Weight
Max.: 17,390 kg
(38,338.39 lb)Min.: 2,800 kg
(6,172.94 lb)
Description
Combining a high-speed spindle with precise linear guideways ensures that the STORM series gives outstanding efficiency, accuracy and value throughout its lifetime. Brilliant versatility and rigidity is offered as standard, with superior component finish, performed smoothly and easily.
Roller Type Linear Guide Ways
The Linear Motion Guideways feature low friction and free from stick-and-slip problems. Such the characteristics are especially suitable for high speed 3D cutting and finishing. The quality of workpiece surface is increased and the need for manual polishing of workpiece surfaces is reduced.
A wide range: 11 different models
Choice of FANUC, Heidenhain or Siemens control panel
Table sizes from 600 x 320mm up to 2,200 x 850mm
