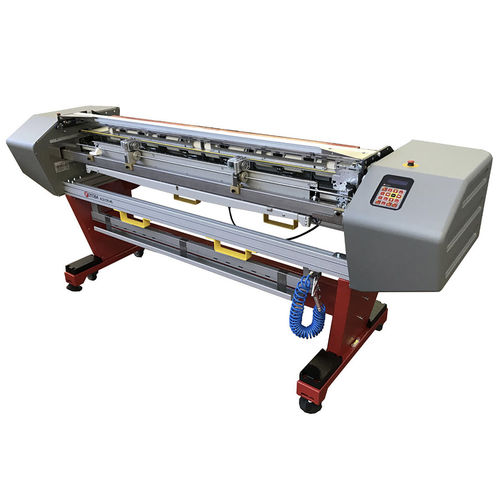

Automatic cutting plotter XLD-170 HS

The XLD170HS doubles the speed of the XLD Standard models. There are two versions: •XLD170HS with Double cut in one pass (patented) to reduce even more the cutting time when cutting small sizes. This version but it is recommended for paper cutting only. •XLD170HS with Double cut in two passe. It is the perfect solution to trim all the flexible media output up to 1,7 mt/67in in the fastest turnaround time. Bothe models have all features same as the XLD models and can be added of all accessories as the standard line. FOTOBA FEATURES: •Self squaring to the edge of the image (X) •Automatic tracking to the image edge (Y) •Max linear speed 50-ft per minute •Vertical Slitters: Single, 8mm double or adjustable double •Cutting by length & quantities for media conversion •Memory channels to store different cut marks •All mechanism controlled by stepper motors •Automatic scanning of the cut marks •Accuracy +/- 0.5 mm (0.02 in.) •Max. Linear Speed 100-ft per minute Technical Specification: - Max paper width: 170cm/67in. - Min paper width: 28cm/11in. - Max roll diameter allowed: 26cm/10in. - Max cutting thickness: 1mm (0.04 inch) - Feeding speed: 100 ft. per min. - X cutting accuracy: 1mm (0.04 inch) - Y cutting accuracy: 1mm (0.04 inch) - Net Weight: 650 lbs. - Dimensions: 110″ x 36″ x 44″
