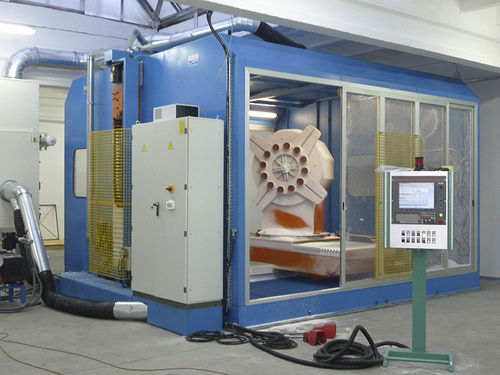

3-axis milling center

horizontal

Our TOPMILLING milling centre performs machining of polystyrene blocks to make the negative components of the channels and the branch formers of the manhole bases. TOPMILLING operates with dedicated parameter-based software and is able to produce any diameter and any type of curve and clutch for manhole bases, from diameters measuring 600mm to diameters measuring 2000mm with clutches from diameters ranging from 150mm to 1600mm. PRODUCTION OF PRODUCTS THROUGH OPENABLE WET CAST MOULDS (outer mould openable mechanically, inner mould openable hydraulically), to be managed individually, or to be integrated into a circuit for the automation of the various production stages, for high daily production rates, with rationalisation of personnel employed NEGATIVE EXTRACTION After demoulding, a system is provided for the extraction of the channels, which can be easily reused. Polystyrene channels for manhole bases min. diameter 800 mm, max. diameter of 2000 mm, with clutches ranging from a diameter of 100 mm to a diameter of 1200 mm, with any type of joint
