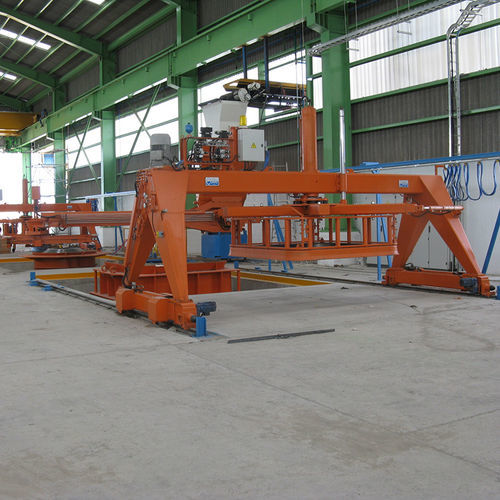

Concrete product making machine Vibrotubi

semi-automatic

Semi-automatic machine for vibration-compaction production of products with a height from 250 mm to 3000 mm, demoulding with overhead crane, particularly suitable for large products. Semi-automatic machine for vibration-compaction production with direct demoulding through overhead cranes of a great variety of concrete products; it is particularly suitable for manufacturing large products. Depending on the different models, the machine can manufacture products of diameters from 300 mm to 3600 mm or up to the size of 3000 mm x 5000 mm if box culverts, with a variable height from 250 mm up to 3000 mm in single production mode (multiple production modes are also available on request). Technical characteristics: - The machine can be equipped with quick hydraulic change of the internal moulds. A quick and easy-to-use system that makes fast daily mould changes possible in a very short time (in addition, the adjustment of cores and pressing heads after production change is no longer necessary). - Concrete feeding can be manual (with a standard conveyor belt controlled by the operator using a joystick), semi-automatic (with a conveyor belt fitted with a rotating distributor), or automatic (with a conveyor belt fitted with a rotating secondary belt controlled through a PC, with software to feed the mould following the outer perimeter. The latter solution is particularly effective for manufacturing box culverts and special products). - Other features that make Vibrotubi an extremely functional system are the mechanical and electronic adjustment of the vibrators through an inverter and the electronic adjustment of the feeding speed of the conveyor belt (where included). - The management and general control of the machine can, on request, be performed through the Vicom PC system, with machine status and fault control synoptics, and complete with remote assistance modules. Products that can be produced: - Circular pipes - Flat base circular pipes - Not reinforced pipes - Pipes reinforced with rigid reinforcements - Fibre reinforced pipes - Draining pipes - Spigot-spigot junction pipes - Box culverts and oval pipes - Jacking pipes - Manhole bases - Risers and cones - Monolit cones for manhole - Flat cover - Grade rings for manholes - Pipes with derivations - Manholes for road drainage - Drainage channels - Special products in general, to be manufactured to customer specifications, with any type of joint Advantages: - Cost-effectiveness - Flexibility (a wide range of products can be manufactured; the machine is ideal for the production of both large-size products, owing to its characteristics, and medium-small products, owing to its cost-effectiveness) - High product quality is guaranteed by the automatic electronic adjustment of vibration (with a vibrator inside the mould) and concrete feeding - Very fast inner mould changes (the reduced mould change times allow the mould to be changed on the same day, for a possible 2nd work shift), without needing to adjust the mould after the change - Ease of use and maintenance - The Vicom PC system allows for full control of the machine, with the possibility of remote production management Technical Sheet: - Vibrotubi - PIPES diameter from cm to cm - BOX CULVERTS max dimensions - MANHOLE CONES max diameter - MANHOLE RINGS max diameter - 3-chamber tanks septic tanks max diameter - manhole base tilting system max diameter Key Features / Technical Specifications: - Semi-automatic vibration-compaction machine for concrete products - Product height: 250 mm to 3000 mm - Product diameter: 300 mm to 3600 mm (pipes), up to 3000 mm x 5000 mm (box culverts) - Quick hydraulic mould change system - Manual, semi-automatic, or automatic concrete feeding - Mechanical and electronic vibrator adjustment via inverter - Electronic conveyor belt speed adjustment - Optional Vicom PC system for control and remote assistance
