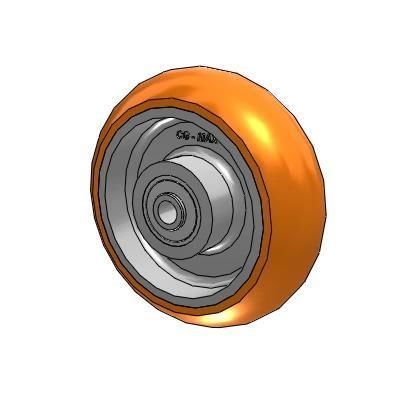

Wheel with solid tire CG-MAXpolyurethaneball bearingpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- polyurethane
- Hub type
- ball bearing
- Tread material
- polyurethane
- Applications
- for materials handling, for transport, for automobiles, for aviation
- Other characteristics
- solid
- Diameter
152.4 mm
(6 in)- Hub length
61.86 mm
(2.44 in)- Tread width
50.8 mm
(2 in)- Bore diameter
39.69 mm
(1.56 in)
Description
Product Name
CG-MAX Orange 6 in x 2 in polyurethane-tread wheel with precision ball bearing
Brand
Albion
Overview
The CG-MAX Orange wheel is a 6 in diameter, 2 in tread polyurethane-tread wheel designed for material-handling applications requiring precision ball bearings and a hardness of 85A. It is suitable for installations where accurate rolling performance, temperature resistance and dimensional consistency are essential. CAD models are available for preview and download (login required).
Suitable Industries
Technical data
Series: CG-MAX Orange
Wheel Diameter: 6 in
Tread Width: 2 in
Bearing Type: Precision Ball
Bearing ID: 0.5 in
Hub Length: 2.4375 in
Temperature Range: -40°F to 180°F
Bore ID: 1.5625 in
Hardness: 85A
SKU: AN0622808MAX
Key specifications
CG-MAX Orange 6 in x 2 in polyurethane-tread wheel with precision ball bearing
Brand
Albion
Overview
The CG-MAX Orange wheel is a 6 in diameter, 2 in tread polyurethane-tread wheel designed for material-handling applications requiring precision ball bearings and a hardness of 85A. It is suitable for installations where accurate rolling performance, temperature resistance and dimensional consistency are essential. CAD models are available for preview and download (login required).
Suitable Industries
- Aerospace
- Air Cargo
- Automotive
- Institutional
- Marine
- Warehousing and Distribution
Technical data
Series: CG-MAX Orange
Wheel Diameter: 6 in
Tread Width: 2 in
Bearing Type: Precision Ball
Bearing ID: 0.5 in
Hub Length: 2.4375 in
Temperature Range: -40°F to 180°F
Bore ID: 1.5625 in
Hardness: 85A
SKU: AN0622808MAX
Key specifications
- Series: CG-MAX Orange
- Wheel Diameter: 6 in
- Tread Width: 2 in
- Bearing Type: Precision Ball (ID 0.5 in)
- Hub Length: 2.4375 in
- Temperature Range: -40°F to 180°F
- Bore ID: 1.5625 in
- Hardness: 85A
- SKU: AN0622808MAX
- Brand: Albion
