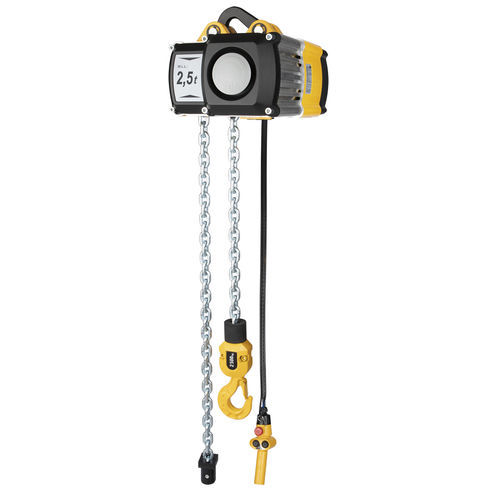

Electric chain hoist CPV series

400 V

The electric chain hoist CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox. Features • Increased operating safety through 42 V control voltage (low voltage control) and the main contactor. • The integrated limit switch for the highest and lowest hook position considerably extends the service life of the slip clutch, motor and gearbox. • Overload protection (slip clutch) in all CPV hoists is outside force flow to meet higher safety requirements. • Electromagnetic spring pressure brake holds the load safely even in the event of power failure. • Different suspension types available such as top hook, lug or an integrated trolley. A retro-fit to another type of suspension is possible. • Any chain length (lifting height) as per customer order. • Oil bath gearbox (or semifluid grease with CPV/F 2-8 and 5-4 as well as CPV 2-4 and 5-2) with helical gearing for particularly smooth service and enhanced lifetime. • All-steel chain guide. • The chain guide of the smallest hoist CPV/F 2-8 and 5-4 as well as CPV 2-4 and 5-2 is a thermoplastic (POM) chain guide that is integral with the housing. • CPV series are protected up to IP 55 • 2 year warranty (excluding wear parts) and a lifetime lubricated gearbox.
